NetScaler MPX 17000

Welcome to the next-generation NetScaler MPX 17000 platform. This section provides comprehensive instructions on how to deploy your appliance efficiently and configure it for optimal performance.

The NetScaler MPX 17000 2U platform represents the latest advancement in NetScaler® technology, featuring enhanced processing power, improved connectivity options, and robust management capabilities.

Key specifications

Prepare for installation

Before installing your new appliance, carefully unpack the unit and verify that all the components are present. The only tools required for installing the appliance are a Phillips screwdriver, a flathead screwdriver, and a cage nut insertion tool (if installing into square-hole racks). Your NetScaler 2U package should include the following items:

• 1x NetScaler MPX 17000 appliance
• 1x standard 4-post rail kit (19-inch rack compatible), which includes:
  • Left rail (x1)
  • Right rail (x1)
  • Mounting screw kit (includes M4x4L, M4x6L, M5x20L screws)
  • Rackmount ear kit (x1)

The included accessory kit contains essential connectivity hardware, including two power cords to support redundant power supply operation.

Notes:

• Rail kit compatibility varies by rack manufacturer and configuration. If the provided rail kit does not fit your specific rack infrastructure, contact your NetScaler sales representative immediately to obtain an appropriate alternative mounting solution.

• Before proceeding, examine all components for shipping damage. Report any damaged items to your carrier and NetScaler support before beginning the installation process.

Infrastructure requirements

• Ensure that the 19-inch rack has a minimum of 550 mm depth clearance and 2U available height (88 mm).
• Proper airflow management with front-to-rear cooling path.
• Adequate weight support (system weight: 35 lbs).

Network requirements

• Administrative LAN switch port available for MGMT 0/1 (1 GbE RJ-45).
• Dedicated out-of-band management network or LOM/IPMI access.
• Appropriate network cables (Cat5e or Cat6 for management, fiber, or DAC for data).
• 50 GbE capable switch for SFP56 data ports; 200 GbE capable switch for QSFP56 data ports.

Power requirements

• Dual power sources (recommended for N+1 redundancy).
• Frequency operating range: 47 Hz – 63 Hz.
• Adequate power capacity (full load 100 V: 734 W / 240 V: 716 W).
• PSU input connector: IEC320-C14 (Male).
• Required power cord: IEC320-C13 to NEMA 5-15P (or regional equivalent).
• Rating: Minimum 10 A / 250 V.

Detailed AC input voltage specifications

Maximum input current requirements

Management station requirements

• Workstation or laptop (Windows or macOS) with network connectivity.

• Web browser with JavaScript and HTML5 support (Chrome, Firefox, Safari, or Edge).

• Terminal emulator software for CLI access.

• Administrative privileges for network configuration.

Hardware platform

Front panel components

The MPX 17000 front panel provides management interfaces, NVMe drive bays, data ports, and power controls. Two hot-swappable NVMe bays are located at the front left of the panel.

NVMe drive bay assignments:

• Slots 1–2: Two 960 GB NVMe SSDs configured as RAID-1 for the MPX OS/system volume.

Front panel component description

Rear panel components

The rear panel houses the dual Common Redundant Power Supply (CRPS), cooling fans, a secondary Unit Identification (UID) LED, a PSU alarm mute button, a VGA output port, and a rear power button.

Panel component description

Install the hardware

Rack-mount the appliance

Perform the following procedure to ensure proper appliance mounting and system performance.

Remove the inner rails from the rail assembly

1. Pull the white disconnect tab to release and detach the inner rail member from each slide rail.

2. With the stamped text facing outward, align the inner rail with the chassis mount points, using the black reference markers on both sides of the chassis.

3. Slide the rail toward the rear until it clicks firmly into the locked position.

4. Fasten each inner rail using the provided M4x4L screws. Use five screws per side for a total of ten.

5. Repeat this process for both the left and right sides of the chassis.

Chassis mounting ear installation

1. Attach rack mount ears to both the left and right sides of the chassis front.

2. Align the ears with the designated screw holes on the chassis.

3. Secure each ear with M4x6L screws using four screws per side.

4. Verify that the ears are flush and do not obstruct front panel access.

Outer slide rail assembly installation

1. Align the mounting brackets with the rack post holes at the selected 2 U-height.

2. Insert the rail mounting mechanism into the rack posts until it engages.

3. Listen for an audible “click” to confirm that the rail is properly seated and locked.

4. Ensure both the front and rear mounting points are securely attached to the posts.

5. Verify that the rails are level and parallel using the numbered rack post markings.

6. Repeat this process for both the left and right outer rail assemblies.

Mount the chassis into the rack

1. Carefully align the chassis-mounted inner rails with the rack-mounted outer rails.

2. Smoothly slide the system into the rack until the locking mechanism engages.

3. If necessary, apply even pressure to ensure the unit locks securely into place.
4. Secure each front ear to the rack post using one M5x20 screw per side.

Safety requirements

For safety and equipment durability, ensure that the following requirements are met:

1. Maintain a minimum of 2 inches of clearance at the front and rear of the chassis to ensure proper ventilation.

2. Verify the rack’s weight capacity before installation and ensure that the rack is stable and properly secured to the floor.

3. Use proper lifting techniques. The system weight is approximately 35 lbs.

4. Strictly follow electrical safety procedures when connecting the appliance to a power source.

Airflow management

The 2U platform is designed for front-to-rear airflow. Unobstructed passage is required for optimal cooling performance. Restricted airflow results in thermal overheating and the automatic activation of system protection mechanisms (throttling or shutdown).

Network and power connections

Connection sequence

Perform the following procedure to ensure proper system initialization and to prevent configuration conflicts.

1. Management network connectivity

   1. Connect the MGMT 0/1 port to your administrative LAN by using a Cat5e/Cat6 Ethernet cable.

   2. Ensure that the network switch port is configured to support auto-negotiation.

   3. Verify network connectivity and ensure that the correct VLAN configuration is applied, if applicable.

   4. Document the assigned IP address and network parameters for future reference.

2. Out-of-Band (OOB) management setup

   1. Connect the Lights-Out Management (LOM) port to a dedicated out-of-band (OOB) management network.
   2. Use separate network infrastructure from production traffic.
   3. Leave the LOM port in dedicated mode operation (factory default).

3. Data port configuration

   1. Install appropriate SFP56 transceivers (50 GbE ports: 50/1-50/8) or QSFP56 transceivers (200 GbE ports: 200/1-200/4).
   2. Match the transceiver type to switch port capabilities. Use Citrix-qualified transceiver MPNs for guaranteed interoperability.
   3. Connect fiber or DAC cables to data ports as required.
   4. Verify that the cable specifications match the port capabilities (50 GbE and 200 GbE).

4. Power system connection

   1. Plug the first power cord into the PSU1 input receptacle.

   2. Plug the second power cord into the PSU2 input receptacle.

   3. Connect the unit to independent power feeds where possible to ensure N+1 redundancy.
   4. Ensure that the power source meets requirements (100–240 VAC, 50–60 Hz).

5. System startup

   1. Press the front panel power button to initiate the boot sequence.
   2. Observe the front panel LEDs; the power LED should illuminate solid green.
   3. Verify both PSU LEDs are solid green within ten seconds of power-on.
   4. Allow the full boot cycle to complete (approximately 4–5 minutes) before accessing the system.

Power supply status indicators

The CRPS power supplies provide comprehensive status monitoring through integrated LED indicators located on each unit’s faceplate.

PSU LED indicator status:

System access and configuration

MPX GUI access method

The NetScaler MPX GUI is a web-based interface for the efficient configuration, monitoring, and troubleshooting of the appliance. Administrators access the GUI over HTTPS using the Management IP (NSIP), providing comprehensive control over system health, networking, load balancing, and security.

Platform-specific access information

• Access the physical appliance directly using the MGMT 0/1 port.

• Default IP address (NSIP): 192.168.100.1

• Default subnet mask: 255.255.0.0/16

Note:

Use the single management interface for full system administration.

Perform the following steps to initialize the appliance

1. Network preparation
   1. Connect your management workstation to the MGMT 0/1 port or a port on the same management VLAN.
   2. Set a static IP address on the workstation in the 192.168.100.X/16 range (for example, 192.168.100.50).
   3. Verify the network path by performing a ping test to the default IP address: 192.168.100.1.
   4. Ensure that any local firewalls allow HTTPS (port 443) traffic to the appliance.
2. Browser initialization
   1. Open a Web browser (Chrome, Firefox, Safari, or Edge).
   2. Enter the URL https://192.168.100.1.

      Note:

      Accept a security certificate warning (self-signed certificate) to proceed to the login page.

3. Initial authentication
   1. Username: nsroot.
   2. Password: Enter the system serial number exactly as it appears on the physical chassis label (case-sensitive).

   3. Click Login or press Enter.

      On successful authentication, the system redirects you to the Initial Configuration Wizard.

4. Setup wizard configuration

   The Setup Wizard guides you through the following essential parameters:

   1. Management service IP address (NSIP): Assign a static IP address for management access.

   2. Subnet mask and default gateway: Configure these for your network segment.

   3. DNS server: Enter the primary DNS IP address.

   4. Hostname: Assign a unique, descriptive hostname to identify the appliance on the network.

   5. Administrative password: Change the default password to a strong, secure administrative password.

Common default IP address configuration

Console connection setup by using the CLI

1. Physical connection

   1. Connect an RJ-45 serial cable to the console port on the front panel.

   2. Connect the other end of the cable to your workstation’s serial port or to a USB-to-serial adapter.

   Ensure that the cable is seated firmly at both ends to prevent data corruption or character “scrambling” during the session.

2. Terminal emulator configuration

   Open your terminal emulation software (such as PuTTY, Tera Term, or SecureCRT) and configure the following settings:

   Setting	Value
   Baud Rate	9600 bps
   Data Bits	8
   Parity	None
   Stop Bits	1
   Flow Control	None (Disabled)
   Terminal Type	ANSI
   Putty Keypad Mode	VT 100

3. Session establishment

   1. Open the terminal emulator application.

   2. Establish a connection by using the configured settings.

   3. Press Enter to trigger the login prompt if it does not appear automatically.

   Wait for the login prompt to display.

4. Authentication process

   1. At the login prompt, type nsroot.

   2. At the password prompt, type the system serial number (found on the chassis label).

   3. On successful authentication, the system displays the NetScaler command prompt.

Note:

All login credentials are case-sensitive.

Sample configuration

Perform the following steps to configure basic network connectivity:

• Configure a NetScaler IP address and subnet mask.

  set ns config -ipaddress 192.0.2.255 -netmask 255.255.255.0

• Add a subnet IP address for client communication.

  add ns ip 192.0.2.254 255.255.255.0 -type snip

• Configure the default route for external connectivity.

  add route 0.0.0.0 0.0.0.0 10.0.0.1

• Configure the system hostname.

  set ns hostname NS17000-1

• Change the administrative password for security.

   set system user nsroot -password <yourpassword>

   Enter password: *****

   Confirm password: *****

   <!--NeedCopy-->


• Save configuration to persistent storage.

  save ns config

• Restart the system to apply changes.

  reboot

Basic verification commands

• Check the system software version.

  show version

• Check system hardware information.

  show hardware

• Display the current IP configuration.

  show ip

• Show all network interfaces status.

  show interface

• Display routing table

  show route

• Verify that the configuration saves status.

  show config

System specifications

Hardware configurations

The MPX 17000 platform integrates enterprise-grade hardware built to deliver high-performance applications with consistent reliability.

Core system architecture

Power and environmental specifications

Power system specifications

Environmental specifications

Physical specifications

System LED status

The system provides real-time status monitoring by using the LED indicators located on the front and rear panels.

Front panel LED status

Power supply LED status

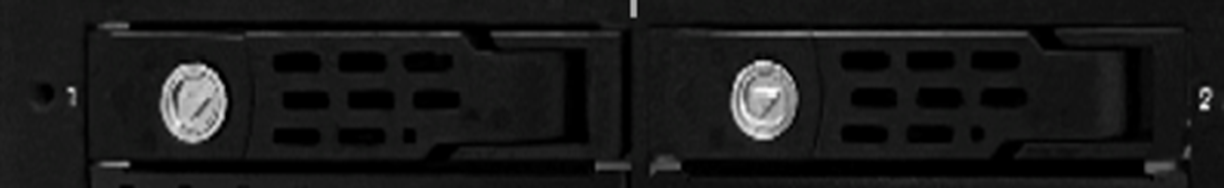

NVMe SSD tray LED status

Each NVMe tray includes two LEDs. The right LED indicates drive presence and activity. The left LED indicates drive status and is controlled by the NVMe backplane controller through the BMC.

Left LED status indicators:

Note:

Use the LOM Web UI (Storage section) to toggle the Location LED for a specific NVMe slot (1–2) to identify a drive in a populated rack. Select the target drive and change the Location LED state from OFF (default) to ON (Locate Active).

Right LED status indicators:

Additional information resources

• For information about detailed specifications, configuration guides, and troubleshooting procedures, see the NetScaler Hardware Platforms Documentation.
• For information about step-by-step procedures for performing system upgrades and downgrades, see Upgrade and downgrade a NetScaler appliance.
• For information about deploying redundant NetScaler configurations, see Configuring high availability.

Technical support access

• Primary support portal: Customer portal at https://www.netscaler.com/
• Online documentation: Complete technical library at www.docs.netscaler.com

Information required for technical support

Before contacting NetScaler Support, gather the following information to ensure an efficient resolution process:

• Hardware serial number: Locate this on the physical chassis label.

• Software version: Provide the current release version and specific build number (Example: Release 14.1 Build 12.35).

• Problem description: Document the specific issue, including exact error codes, timestamps of the occurrence, and any recent changes to the environment.

• System configuration: Provide the network environment and relevant configuration files (Example: ns.conf).

• Log files: Collect the system logs and diagnostic information.
