LOM port management for MPX 9200

This section provides step-by-step instructions for the initial configuration of the Lights Out Management (LOM) interface on NetScaler MPX 9200 series platforms. The LOM enables essential out-of-band management, allowing you to manage the appliance independently of the main operating system.

Prerequisites

Before beginning the LOM configuration, ensure that the following requirements are met:

• Physical or console access to NetScaler.
• Network connectivity to the LOM port (direct or switched).
• Device serial number (required for initial authentication).
• Planned IP addressing scheme for the LOM network segment.
• Administrative access credentials.
• Web browser with HTML5 support (Chrome, Firefox, Edge, or Safari).
• Standard HTTPS (port 443) network access to the LOM IP address.

Note:

Java or third-party plugins are not required.

Initial network access

The LOM interface is configured with default settings to facilitate initial configuration.

Default LOM settings

Network connection methods

Select one of the following connection methods for initial setup:

Direct connection:

• Connect a laptop Ethernet port to the LOM interface using a crossover cable.
• Set the laptop static IP address to 192.168.1.10 with a subnet mask of 255.255.255.0.

Switched connection:

• Connect the LOM interface and a management workstation to the same network switch.
• Ensure that both devices are in the 192.168.1.0/24 broadcast domain.

Configure LOM by using the GUI

Initial login and password change

Access the LOM web interface using the default IP address.

1. Open a web browser

   1. Type https://192.168.1.3.
   2. Accept the self-signed SSL certificate warning that appears in the browser.

2. Authenticate with default credentials

   1. Enter nsroot as the Username.
   2. Enter the device serial number as the Password (note: this is case-sensitive).
   3. Click Login.

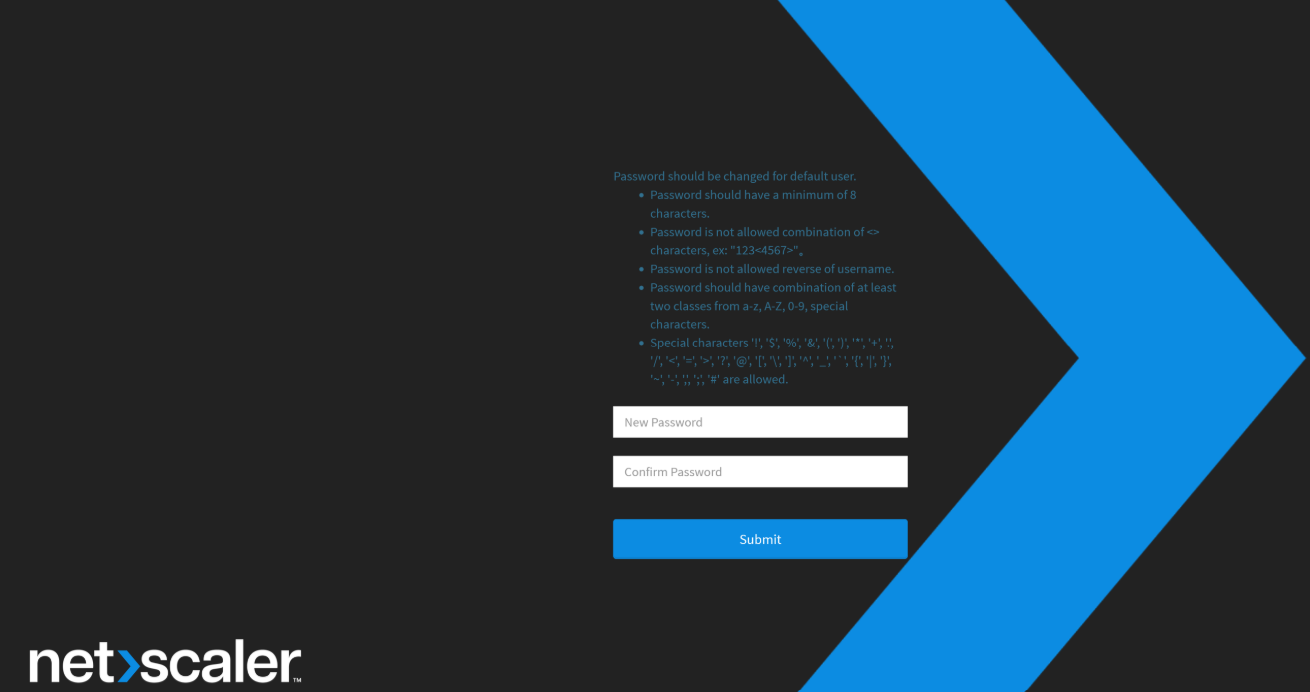

3. Mandatory password change

   On the first login, the system enforces a password change for security.

   • Current Password: Enter the device serial number.
   • New Password: Enter a password that meets the complexity requirements shown on the page.
   • Confirm Password: Re-enter the new password.
   • Click Submit to save.

Note:

The system logs you out automatically once the password is saved. Log in again using the nsroot account and your newly created password.

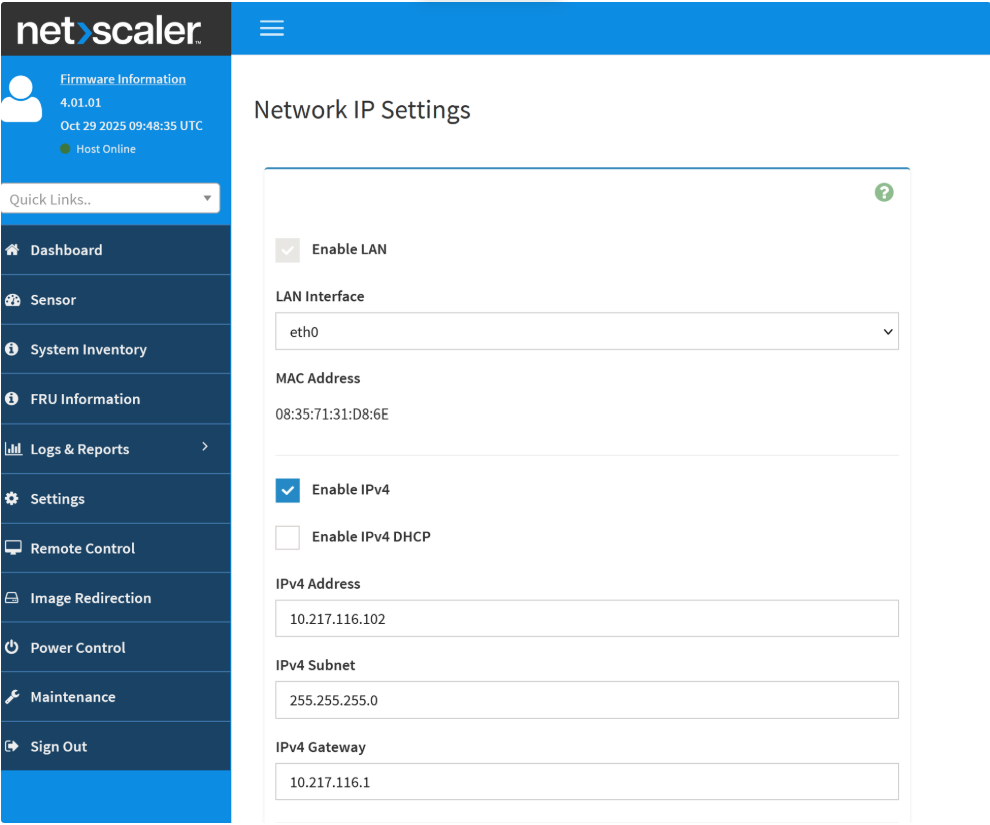

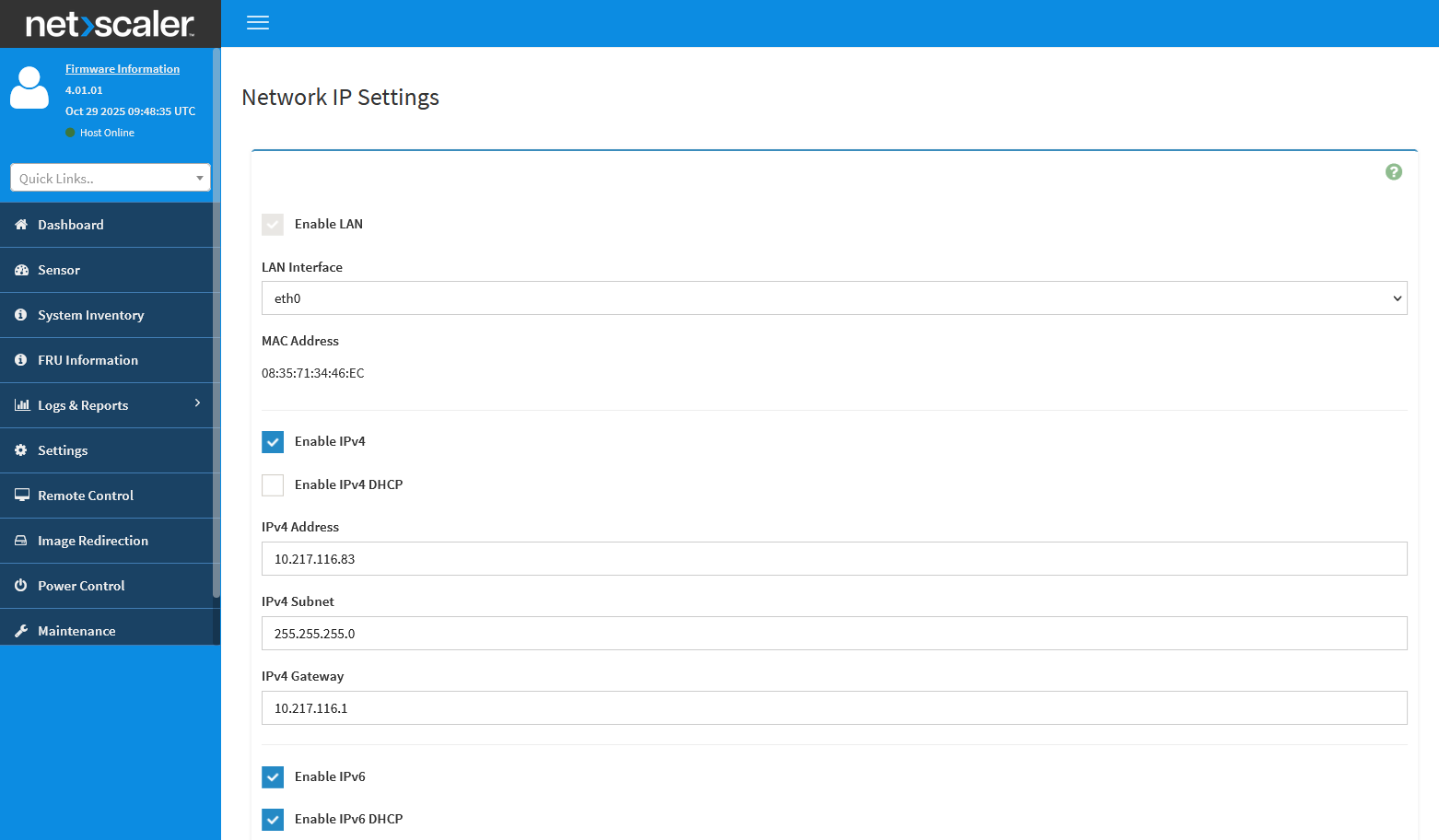

Network configuration

To integrate LOM into your production management network:

1. Navigate to Settings > Network IP Settings > LAN Interface (eth0).
2. Enter the following details:
   1. IPv4 Address
   2. IPv4 Subnet
   3. IPv4 Gateway
3. Click Save. The Baseboard Management Controller (BMC) takes approximately 30 seconds to apply changes and then disconnects your current session.

4. Verify connectivity by pinging the new LOM IP address by using the following command from your management workstation:

   ping <New_LOM_IP_Address>

5. Access the LOM interface using the new IP address:

   https://<new_LOM_IP_address>

6. Log using nsroot and updated password.

System lockdown mode restriction

When System Lockdown mode is enabled, BMC enforces read-only access to all the out-of-band interfaces to prevent unauthorized changes.

Symptoms of lockdown mode

If the system is locked, you encounter the following issues within the GUI:

• Error Messages: Insufficient privilege (code 8000).
• Notifications: You do not have permission to view this content.
• GUI Behavior: Settings menu items appear grayed out or are completely inaccessible.

Affected functions

The following operations are restricted during lockdown:

• Network configuration changes.
• User management and password operations.
• LOM firmware updates.
• Field Replaceable Unit (FRU) data modifications.

Resolution

System Lockdown must be disabled from the NetScaler host OS using ipmitool commands. For information about how to disable lockdown, see System lockdown management section in the CLI section for lockdown management procedures.

Configure LOM by using the CLI (IPMI tool)

If the GUI is inaccessible or System Lockdown is active, use the NetScaler host shell to run the ipmitool commands.

Access requirements

To run command-line instructions, connect to the appliance by using one of the following methods:

• Serial console connection
• SSH session (if a network is configured)
• Direct access or monitor access

Note:

All commands must run from the NetScaler shell environment. If you are at the NetScaler CLI prompt, type shell to enter the FreeBSD environment.

System lockdown management

System Lockdown mode prevents unauthorized out-of-band changes.

• Check Status: ipmitool raw 0x34 0x81 (00=Disabled (Configuration changes allowed), 01=Enabled (Read-only mode active)).

• Disable Lockdown: ipmitool raw 0x34 0x81 0x0.

  This command enables full read-write access to all BMC configuration interfaces.

• Enable Lockdown: ipmitool raw 0x34 0x81 0x1.

  This command restricts all BMC interfaces to read-only access for enhanced security.

Static IP configuration

Perform the following procedure to manually configure the interface:

1. Set the IP address source to static: Change the interface mode to disable DHCP and prepare the interface for static IP assignment using the following command:

   ipmitool lan set 1 ipsrc static

2. Assign the IP address: Specify the static IP address for the LOM interface using the following command:

   ipmitool lan set 1 ipaddr <LOM_IP_Address>

   Example: ipmitool lan set 1 ipaddr 192.0.2.255

3. Assign the Subnet mask: Define the subnet mask for the LOM network segment using the following command:

   ipmitool lan set 1 netmask <Subnet_Mask>

   Example: ipmitool lan set 1 netmask 255.255.255.0

4. Configure the default gateway: Specify the gateway address for routing traffic outside the local segment using the following command:

   ipmitool lan set 1 defgw ipaddr <Gateway_IP>

   Example: ipmitool lan set 1 defgw ipaddr 192.0.2.255

5. Reset or reboot the BMC to apply changes:

   ipmitool bmc reset cold

   The BMC requires approximately 120 seconds to fully initialize after a reset.

Verify configuration

After the 120-second initialization period, verify the new network configuration.

Display current LOM network settings

Run the following command to display all current network parameters, including the IP address, subnet mask, gateway, and MAC address.

ipmitool lan print 1

Test network connectivity

From an external management workstation, test connectivity to the new LOM IP address:

ping <new_LOM_IP_address>

Access the LOM web interface to confirm full functionality:

https://<new_LOM_IP_address>

User password management

Change the default LOM password from the NetScaler host environment for enhanced security.

1. List current users

   Run the following command to display all configured LOM user accounts with their user IDs:

   ipmitool user list 1

   Example output:

   ID	Name	Callin	Link Auth	IPMI Msg	Channel Priv Limit
   1	nsroot	false	false	false	NO ACCESS
   2		false	false	true	ADMINISTRATOR
   3		true	false	false	NO ACCESS

   Note:

   The default nsroot account has a User ID of 2.

2. Change user password

   Run the following command to change the password for the nsroot account (User ID 2):

   ipmitool user set password <user_ID> <new_LOM_password>

   Where:

   • <user_ID> is the appropriate user ID (typically 2 for nsroot account).
   • <new_LOM_password> is the new password.

   Example:

   ipmitool user set password 2

   You are prompted to enter the new password interactively.

   Alternative (Non-Interactive):

   ipmitool user set password 2 NewSecurePassword123

   Note:

   The system prompts for the new password interactively. Enter the password when prompted.

LOM factory reset

Restoring the BMC to factory defaults resets all the LOM network, user, and web settings. To exclude network configurations from this reset, verify that IPMI/Network Preserve Configuration is toggled on within the GUI Maintenance tab.

Run the following command to reset the LOM to factory default.

ipmitool raw 0x32 0x66

Reset effect:

• All settings revert to defaults (192.168.1.3/24).
• All passwords reset to the device serial number.
• System Lockdown mode is enabled by default
• SSL certificates reset to self-signed defaults.
• All custom configurations are lost.

Post-reset actions:

The BMC automatically restarts after a factory reset. Wait 120 seconds for full initialization, then reconfigure the LOM interface using either GUI or command-line methods.

Remote system power control

The LOM interface provides comprehensive remote power management capabilities for system startup, shutdown, and reset operations.

Power on procedure

Run the following steps to remotely start the system.

1. Pre-startup verification

   Before initiating power-on, verify the following conditions:

   • Power supplies are connected and operational.
   • Network infrastructure is available and stable.
   • Environmental conditions are within an acceptable range (temperature, airflow).
   • No hardware alerts or critical warnings are active.

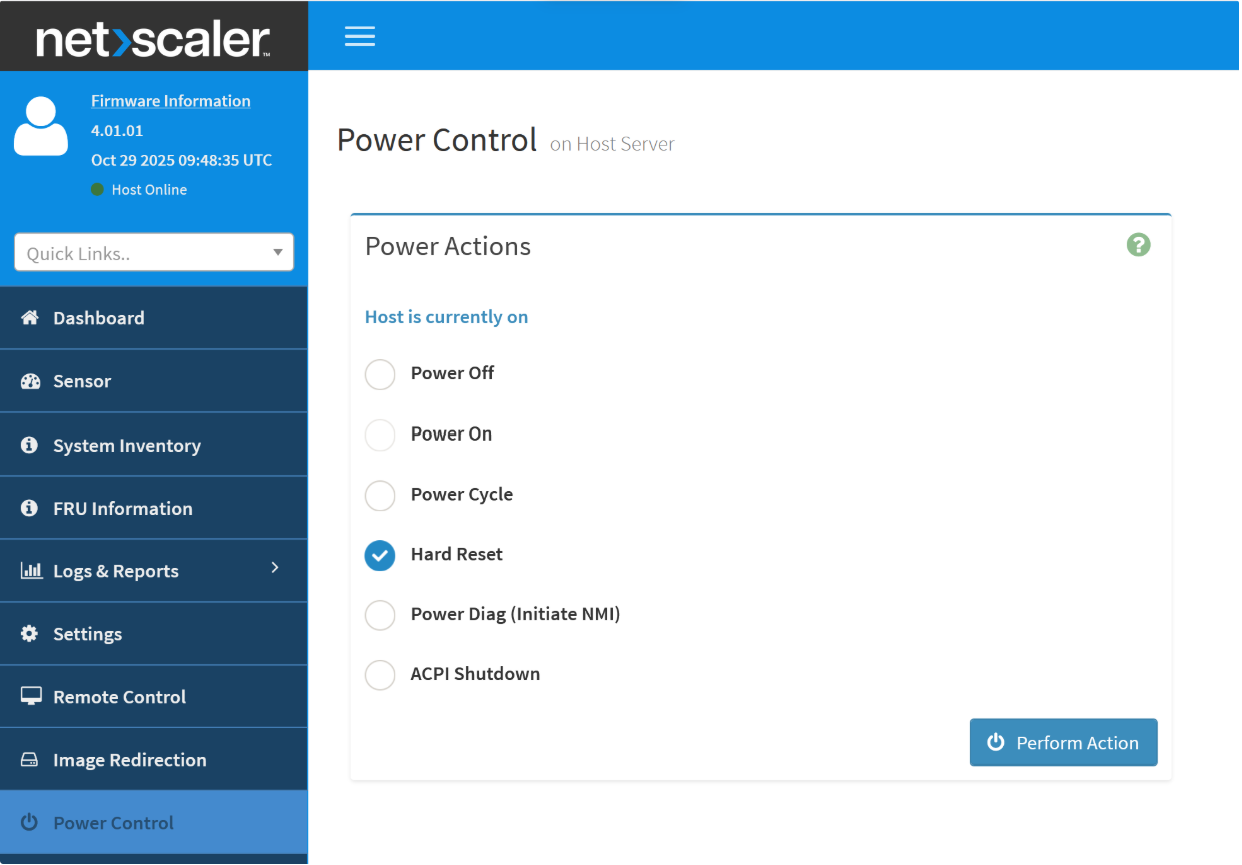

2. Access power control

   Navigate to the power control interface, LOM Web UI > Dashboard > Power Control.

3. Run power on

   1. Select Power On from the available power control actions.
   2. Review the confirmation dialog.
   3. Click Perform Action to initiate the startup sequence.

4. Monitor startup process

   Observe the following indicators during system boot:

   • The power LED changes from off to solid green.
   • The system completes POST (Power-On Self-Test).
   • Network interfaces initialize and link up.
   • The operating system loads and becomes accessible.

Note:

Use the iKVM console feature to monitor boot progress in real time, if needed.

Graceful shutdown procedure

Perform a graceful operating system shutdown before removing power.

1. Pre-Shutdown verification

   Confirm the following conditions before initiating a shutdown:

   • No critical operations are in progress.
   • All active user sessions are canceled.
   • Configuration changes are saved.
   • Backup operations are complete.

2. Access power control

   Navigate to the power control interface, LOM Web UI > Dashboard > Power Control.

3. Initiate ACPI Shutdown

   1. Select ACPI Shutdown from the power control actions.
   2. Review the confirmation dialog.
   3. Click Perform Action to initiate the graceful shutdown.

   The ACPI Shutdown option sends a graceful shutdown signal to the operating system, allowing all services to exit.

4. Monitor shutdown process

   Observe the following indicators during system shutdown:

   • The operating system begins the shutdown sequence.
   • Network interfaces go offline.
   • System services exit gracefully.
   • The power LED changes from green to off.

   Note:

   Allow adequate time for a complete shutdown before initiating any power-on operations.

Troubleshooting

Common issues and resolution procedures for LOM initial configuration.

Cannot access the default IP address

Issue: Browser cannot reach https://192.168.1.3.

Possible causes:

• The workstation is not configured with the correct IP address.
• Network cable is not connected properly.
• Layer 2 switching issue or VLAN mismatch.
• BMC is not fully initialized after system boot.

Resolution steps:

1. Verify workstation IP configuration: Use ipconfig (Windows) or ifconfig/ip addr (Linux/macOS).
2. Verify physical cable connection: Ensure the cable is plugged into the dedicated LOM port.
3. Check link status: Verify the LED on the LOM port is active.
4. Wait for initialization: Allow up to 5 minutes after system boot for the BMC to initialize.
5. Direct Connection: Try a direct crossover cable connection if a switched network issue is suspected.

Login fails with default credentials

Issue: Authentication fails when using nsroot and the serial number.

Possible causes:

• Incorrect serial number entry (passwords are case-sensitive).
• The password was previously changed from the default.
• The user account is locked due to multiple failed attempts.

Resolution steps:

1. Verify serial number: Check the physical label or device documentation.
2. Check case-sensitivity: Ensure the serial number is entered exactly as displayed.
3. Clear browser data: Clear the browser cache and cookies, then retry.
4. Account Lockout: Wait 15 minutes if the account is locked, then retry.
5. Factory Reset: Perform a factory reset if the password is lost and cannot be recovered.

BMC not responding after configuration

Issue: LOM interface becomes inaccessible after applying network changes.

Possible causes:

• An invalid IP address or subnet mask is entered.
• The network gateway is unreachable from the new IP address.
• IP address conflicts with another device on the network.
• BMC requires additional time for initialization.

Resolution steps:

1. Wait for initialization: Allow a full 120 seconds for BMC network initialization.
2. Check for conflicts: Verify that no other device on the network segment is using the same IP address.
3. Test connectivity: Attempt to ping the new IP address from a management workstation.
4. Revert to default: Try connecting to the original default IP address (192.168.1.3) if the new IP address fails.
5. Factory Reset: Perform a factory reset if the BMC remains completely inaccessible.

Best practices for LOM configuration and management

Security best practices

Implement the following security measures immediately after the initial LOM configuration to ensure the integrity of the management environment.

Password policy

• Change default passwords: Update the default credentials immediately after the first login.
• Complexity requirements: Use strong passwords with a minimum of 8 characters.
• Character variety: Include a mix of uppercase letters, lowercase letters, numbers, and special characters.
• Rotation: Rotate passwords regularly according to your organizational security policy.
• Uniqueness: Avoid using common words or device-specific information (such as serial numbers) in passwords.

System lockdown

• Production readiness: Enable System Lockdown mode in all production environments.
• Maintenance window: Disable lockdown only when configuration changes are explicitly required.
• Re-enablement: Re-enable lockdown immediately after completing maintenance tasks.

Access logging

• Audit logging: Enable audit logging for all administrative actions to maintain a clear history of changes.
• Regular reviews: Regularly review access logs for any signs of unauthorized attempts.
• Alerting: Implement alerting mechanisms for failed authentication attempts.

SSL/TLS configuration

• Certificate replacement: Replace the default LOM self-signed SSL certificate with certificates from a trusted multi-tier CA root chain.
• Chain validation: Implement proper certificate chain validation.
• Protocol version: Use minimum TLS 1.2 protocol.
• Monitoring: Configure appropriate monitoring for certificate expiration.

Power control best practices

Follow these guidelines for safe and effective power management:

• Prioritize graceful shutdowns: Use graceful shutdown procedures whenever possible to prevent data corruption and service disruption.
• Observe power cycle delays: Wait a minimum of 30 seconds between power-off and power-on operations.
• Maintain documentation: Document all power control actions in change management or maintenance logs.
• Schedule operations: Coordinate all power operations with established maintenance windows to minimize impact.
• Ensure redundant access: Maintain alternative access methods (such as serial console or iKVM) while power cycling the system.
• Verify system state: Always verify the system’s operational state both before and after performing power operations.
