Configure NetScaler Gateway to support Enlightened Data Transport
EDT traffic through Gateway now has end-to-end visibility. Availability of both real-time and historical visibility data enables NetScaler ADM to support a wide variety of use cases.
The following scenarios are supported:
| Scenario | EDT support |
|---|---|
| NetScaler Gateway | Yes |
| NetScaler Gateway with High Availability (HA) | Yes |
| NetScaler Gateway with High Availability (HA) optimization | Yes |
| NetScaler with Unified Gateway | Yes |
| NetScaler Gateway with GSLB | Yes |
| NetScaler Gateway with Cluster | Yes |
| Citrix Workspace app to NetScaler Gateway DTLS encryption | Yes |
| Dual Secure Ticket Authority (STA) on NetScaler Gateway | Yes |
| NetScaler Gateway ICA session timeout | Yes |
| NetScaler Gateway Multi-Stream ICA | No |
| NetScaler Gateway session reliability (Port 2598) | Yes |
| NetScaler Gateway Double-Hop | Yes |
| NetScaler to VDA DTLS encryption | Yes |
| HDX Insight | Yes |
| NetScaler Gateway in IPv6 mode | No |
| NetScaler Gateway SOCKS (Port 1494) | No |
| NetScaler pure LAN proxy (see note) | No |
Note:
EDT is not supported if NetScaler LAN proxy is configured in the LAN User mode or Transparent mode. However, TCP is supported. For more information, see Configuring outbound ICA Proxy.
Configure NetScaler Gateway to support Enlightened Data Transport
If you use Enlightened Data Transport (EDT), Datagram Transport Layer Security (DTLS) must be enabled to encrypt the UDP connection used by EDT. The DTLS parameter must be enabled at the Gateway VPN virtual-server level. Also, the Citrix Virtual Apps and Desktops components must be correctly upgraded and configured to achieve encrypted traffic between the Gateway VPN virtual server and the user device.
Note: UDP port (for example port 443) configured for the NetScaler Gateway front end virtual server must be opened in the DMZ for the virtual server to receive the DTLS connections. DTLS and CGP are prerequisites for EDT to be compatible with NetScaler Gateway.
To configure NetScaler Gateway to support EDT using GUI
-
Deploy and configure NetScaler Gateway to communicate with StoreFront and authenticate users for Citrix Virtual Apps and Desktops.
-

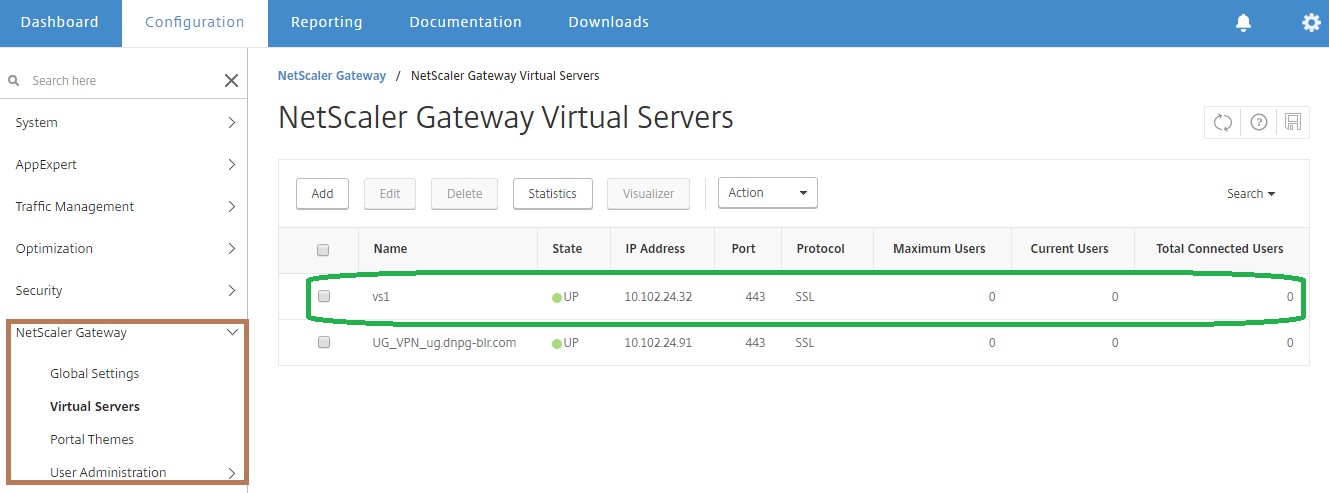

On the Configuration tab in the NetScaler GUI, expand NetScaler Gateway and select Virtual Servers.
-

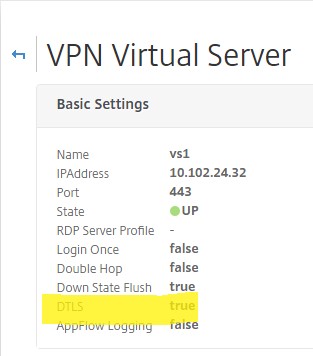

Click Edit to display Basic Settings for the VPN Virtual Server, and then verify the state of the DTLS setting.
-

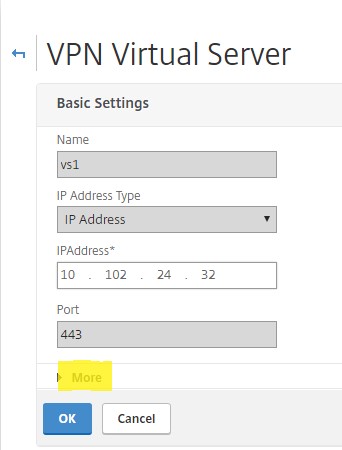

Click More to display other configuration options.
-

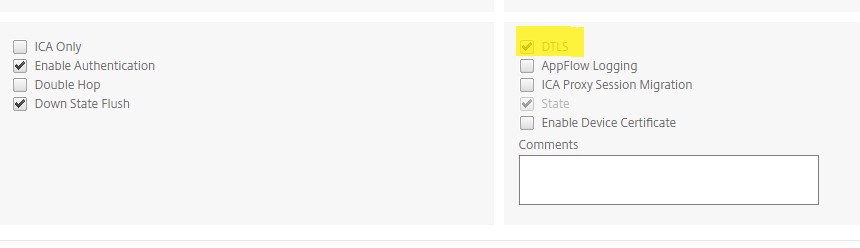

Select DTLS to provide communications security for datagram protocols. Click OK. The Basic Settings area for the VPN virtual server shows that the DTLS flag is set to True.
To configure NetScaler Gateway for EDT support using CLI
set vpn vserver vs1 -DTLS ON
