Endpoint Analysis v2

July 17, 2025
Contributed by:
C

Endpoint Analysis (EPA) is vital for Zero Trust Network Access (ZTNA), assessing endpoint device context and posture before granting access. From release 14.1 build 25.56, EPA v2 offers a more robust and reliable policy evaluation, with enhanced capabilities for stronger assurance and improved security, making it the recommended option.

Supported platforms and versions

The following table lists the EPA client platforms and versions that support EPA v2:

EPA client platform Version
Windows 24.6.1.18 and later
macOS 24.04.1 and later
Linux 23.10.3 and later

Supported and non-supported scans

EPA v2 supports most of the scans for browser-based and Citrix Workspace app-initiated sessions, which are supported by EPA v1. For more information, see Endpoint Analysis.

The following scans are not supported by EPA v2:

  • Windows EPA scans for missing patches

  • Windows last update scan

  • MAC Address scans under Windows and Mac drop-down menus in the Expression editor

  • Registry scans with version comparison using operators (<, >, ==, !=, <=, >=). This limitation is only specific to version comparisons while the standard integer comparisons work as expected.

Prerequisites

  • Configure nFactor authentication (advanced authentication) in NetScaler Gateway.

  • Enable the HttpOnlyCookie parameter either by using the CLI or the GUI.

    • To enable HttpOnlyCookie parameter by using the CLI, type the following command in the command prompt:

       set aaa parameter -httpOnlyCookie ENABLED
 <!--NeedCopy-->

    • To enable HttpOnlyCookie parameter by using the GUI, navigate to NetScaler Gateway > Global Settings > Change authentication AAA settings. On the Configure AAA Parameter page, set HttpOnly Cookie to ENABLED.

Enable EPA v2 on NetScaler Gateway

To enable EPA v2 by using the CLI

At the command prompt, type:

set aaa parameter -enhancedEPA ENABLED
<!--NeedCopy-->

To enable EPA v2 by using the GUI

  1. Navigate to NetScaler Gateway > Global Settings > Change authentication AAA settings.

  2. On the Configure AAA Parameter page, set Enhanced EPA to ENABLED.

  3. Click OK.

  4. Reboot the primary node (which was previously a secondary node) to make sure that both the nodes of the HA setup have the same configuration.

    Note:

    A reboot is not required for a new NetScaler configuration.

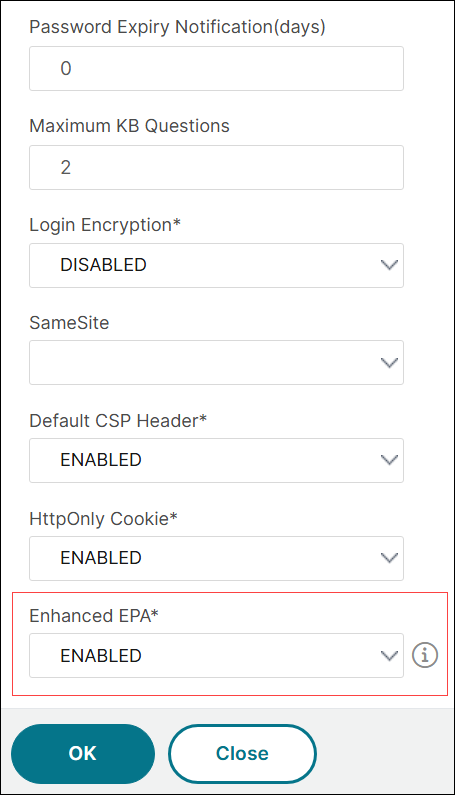

Enable EPA v2

Upgrade NetScaler

Upgrade your NetScaler to the appropriate version by downloading from the Citrix Downloads page. For detailed instructions on how to upgrade an HA pair, see Upgrade a high availability pair.

Upgrade client components on NetScaler Gateway

Run the following command in the NetScaler shell to check the client versions associated with your NetScaler:

cat /var/netscaler/gui/vpn/pluginlist.xml
<!--NeedCopy-->

If the associated client versions do not comply with Supported platforms and versions, update the clients as mentioned in the following sections.

Upgrade the Citrix Secure Access client and EPA client for Windows

Upgrade the Citrix Secure Access client and EPA client for Windows according to the steps mentioned in Upgrade the Citrix Secure Access client and EPA client for Windows on NetScaler Gateway.

Upgrade the Citrix Secure Access client and EPA client for macOS

Upgrade the Citrix Secure Access client for macOS to the latest version from the App store.

Perform the following steps on NetScaler Gateway to upgrade the EPA client for macOS:

  1. Download the latest EPA client for macOS from https://www.citrix.com/downloads/citrix-secure-access/plug-ins/EPA-clients-for-macOS.html

  2. Navigate to NetScaler Gateway > Update Client Components.

  3. Under Update Client Components, click the Upgrade EPA Libraries or EPA/VPN plugins link.

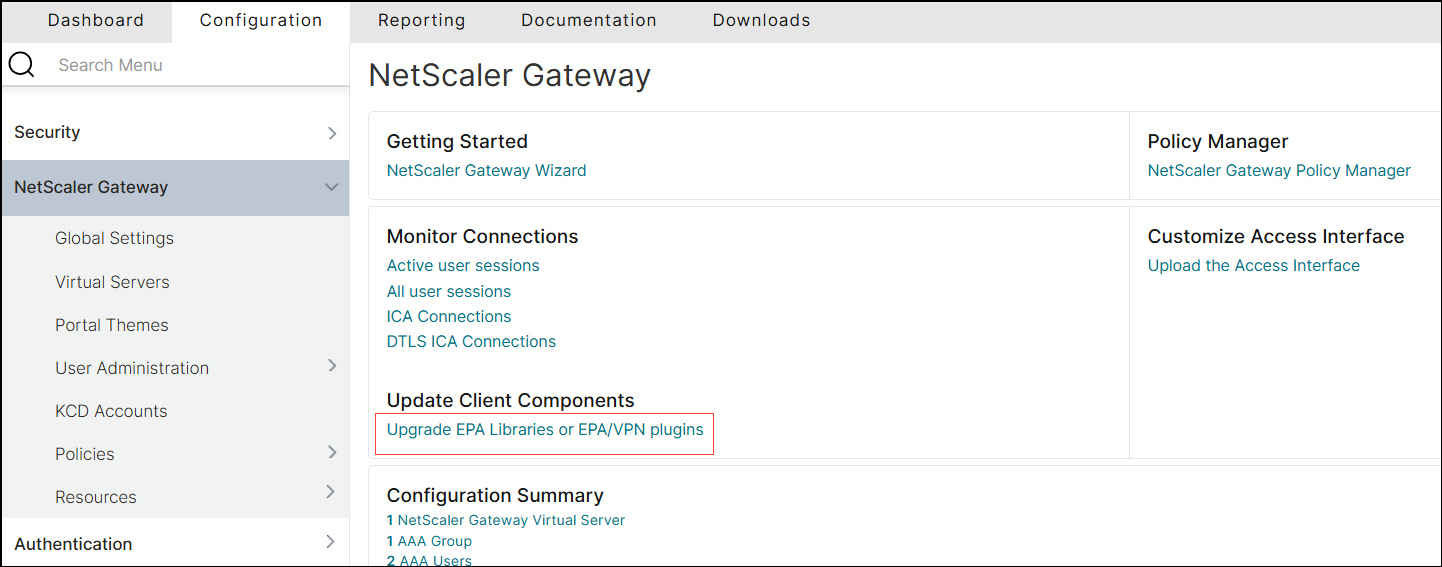

    Update client component

  4. Click Choose File and select the downloaded EPA client file.

  5. Click Upgrade.

  6. Update the pluginlist.xml to reflect the new version details as follows:

    1. Copy the downloaded Citrix_Endpoint_Analysis.dmg to the /var/netscaler/gui/epa/scripts/mac/directory on NetScaler Gateway.

    2. Modify the version and compatibleFrom attributes of plugin tag with name NetScaler Gateway EPA plug-in for Mac in /var/netscaler/gui/vpn/pluginlist.xml to the appropriate values.

      version=“<version>”
compatibleFrom=”<version>”
<!--NeedCopy-->

      The new plugin tag appears as follows:

      <plugin
    name="NetScaler Gateway EPA plug-in for Mac" type="MAC-EPA"
    version="23.7.6" path="/epa/scripts/mac/Citrix_Endpoint_Analysis.dmg"
    compatibleFrom="23.7.6" compatibleTill=""
/>
<!--NeedCopy-->

    3. For the changes to take effect, run the following commands on both the primary and secondary nodes:

      rm -rf /netscaler/ns_gui
ln -s /var/netscaler/gui /netscaler/ns_gui
<!--NeedCopy-->

Upgrade EPA client for Windows and macOS on end-user machines

On upgrading EPA in NetScaler Gateway to EPA v2, the EPA client fails to launch if the EPA client version installed on the end-user machine is not supported by EPA v2. After a timeout of 20 seconds, users are prompted to download the new EPA client.

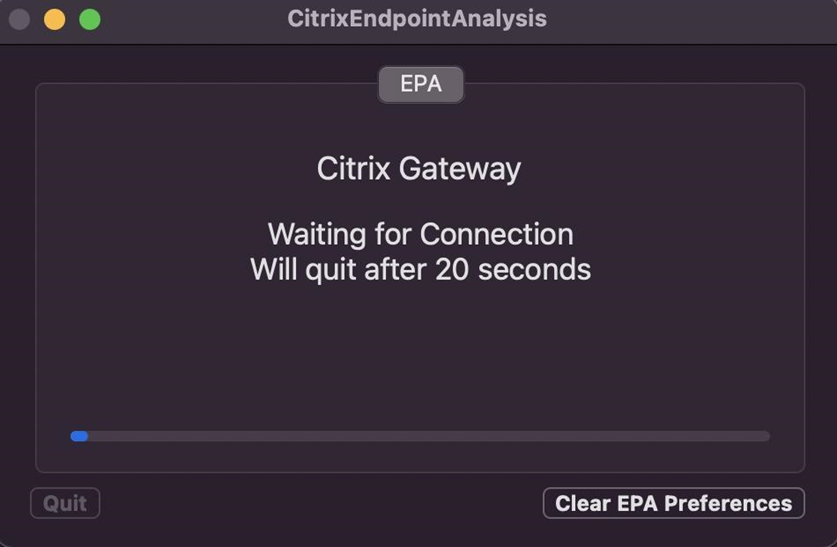

EPA client timeout

Update the EPA client on end-user machines using the following steps:

  1. Click the Download button to download the new EPA client that was previously uploaded to NetScaler Gateway.

  2. Once the new EPA client is installed, click the Retry EPA Launch button on the same page to restart the EPA client.

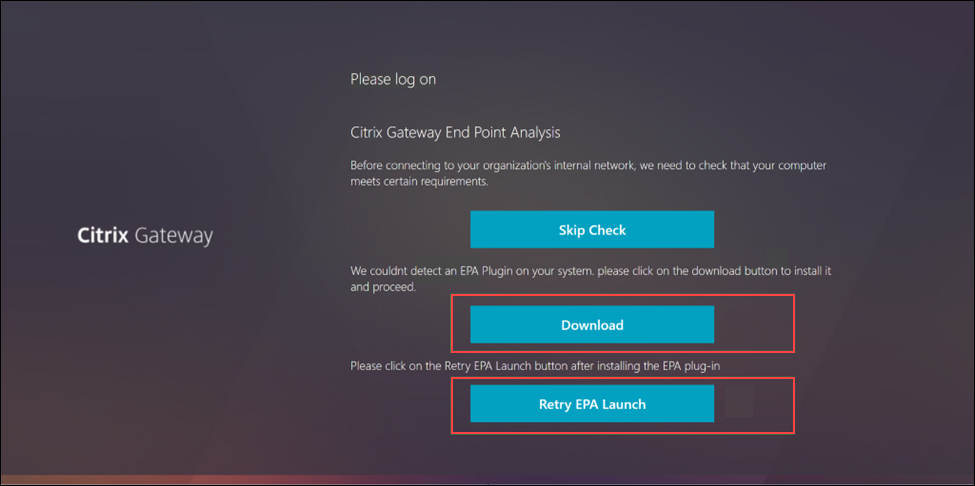

Upgrade EPA client

Troubleshooting issues with EPA v2

Mac address scans

EPA v2 does not support MAC Address scans under Windows and Mac drop-down menus in the Expression editor. The following is a sample scan configuration:

Windows: sys.client_expr("sys_0_MAC_1A2B3C4D5E6F,1D2B3E4D5F6E[COMMENT: MAC Address]")

macOS: sys.client_expr("sys_0_MAC-MAC_1A2B3C4D5E6F,1D2B3E4D5F6E[COMMENT: MAC Address]")

Workaround:

Configure EPA scan to allow specific MAC addresses. For more information, see EPA scan for MAC addresses.

Registry scans using operators (<, >, ==, !=, <=, >=)

EPA v2 does not support registry scans with version comparison using operators (<, >, ==, !=, <=, >=).

Workaround:

Use contains or not contains instead of operators. However, this workaround still does not work for cases like >, <, <=, >=.

Example:

The following is a sample scan configuration with the comparison operator:

sys.client_expr(\"sys_0_REG_PATH_==_HKEY\\\\_LOCAL\\\\_MACHINE\\\\\\\\SOFTWARE\\\\\\\\Citrix\\\\\\\\AppProtection\\\\\\\\Version_REDIR-64_==_TRUE_EXISTS_==_TRUE_VALUE_<=_20.1\")
<!--NeedCopy-->

Replace the preceding scan configuration with the following configuration:

sys.client_expr(\"sys_0_REG_PATH_==_HKEY\\\\_LOCAL\\\\_MACHINE\\\\\\\\SOFTWARE\\\\\\\\Citrix\\\\\\\\AppProtection\\\\\\\\Version_REDIR-64_==_TRUE_EXISTS_==_RUE_VALUE_contains_20.1\")
<!--NeedCopy-->

EPA client download failure

The EPA client download from NetScaler Gateway might fail while upgrading the EPA client on the end-user machine.

Workaround:

Use the following NOCACHE parameter to avoid this issue:

add cache policy bypass_epa_plugin_cache -rule "HTTP.REQ.URL.ENDSWITH(\".dmg\") || HTTP.REQ.URL.ENDSWITH(\".exe\") || HTTP.REQ.URL.ENDSWITH(\".deb\")" -action NOCACHE
bind vpn vserver <vpn-vserver-name> -policy bypass_epa_plugin_cache -priority 5 -gotoPriorityExpression END -type REQUEST
bind authentication vserver <authvs-name> -policy bypass_epa_plugin_cache -priority 5 -gotoPriorityExpression END -type REQUEST
<!--NeedCopy-->
