Gateway

Examples of the Session Profile Settings Created by the Quick Configuration Wizard

January 8, 2024

Contributed by:

The following figures show examples of session profiles created by the Quick Configuration wizard. If you run the Quick Configuration wizard, NetScaler Gateway creates these profile settings automatically. You can also use these examples to configure the policies manually by using the configuration utility.

Note: When you configure the StoreFront URL in NetScaler Gateway, such as https://\<SFLite-FQDN\>/Citrix/StoreWeb, the text StoreWeb is case sensitive.

Each profile contains the same setting on the Security tab, as shown in the following figure:

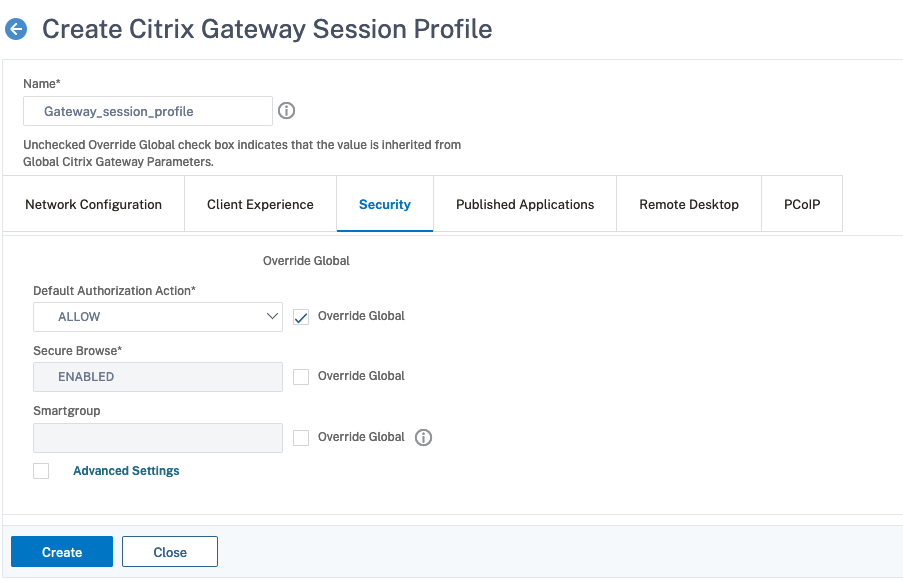

Figure 1. Security Tab in the Session Profile

Security Tab in the Session Profile for Citrix Secure Access client

Examples of Profile Settings for the Citrix Secure Access client

The following examples show the session profile settings on the Client Experience and Published Applications tab for the Citrix Secure Access client.

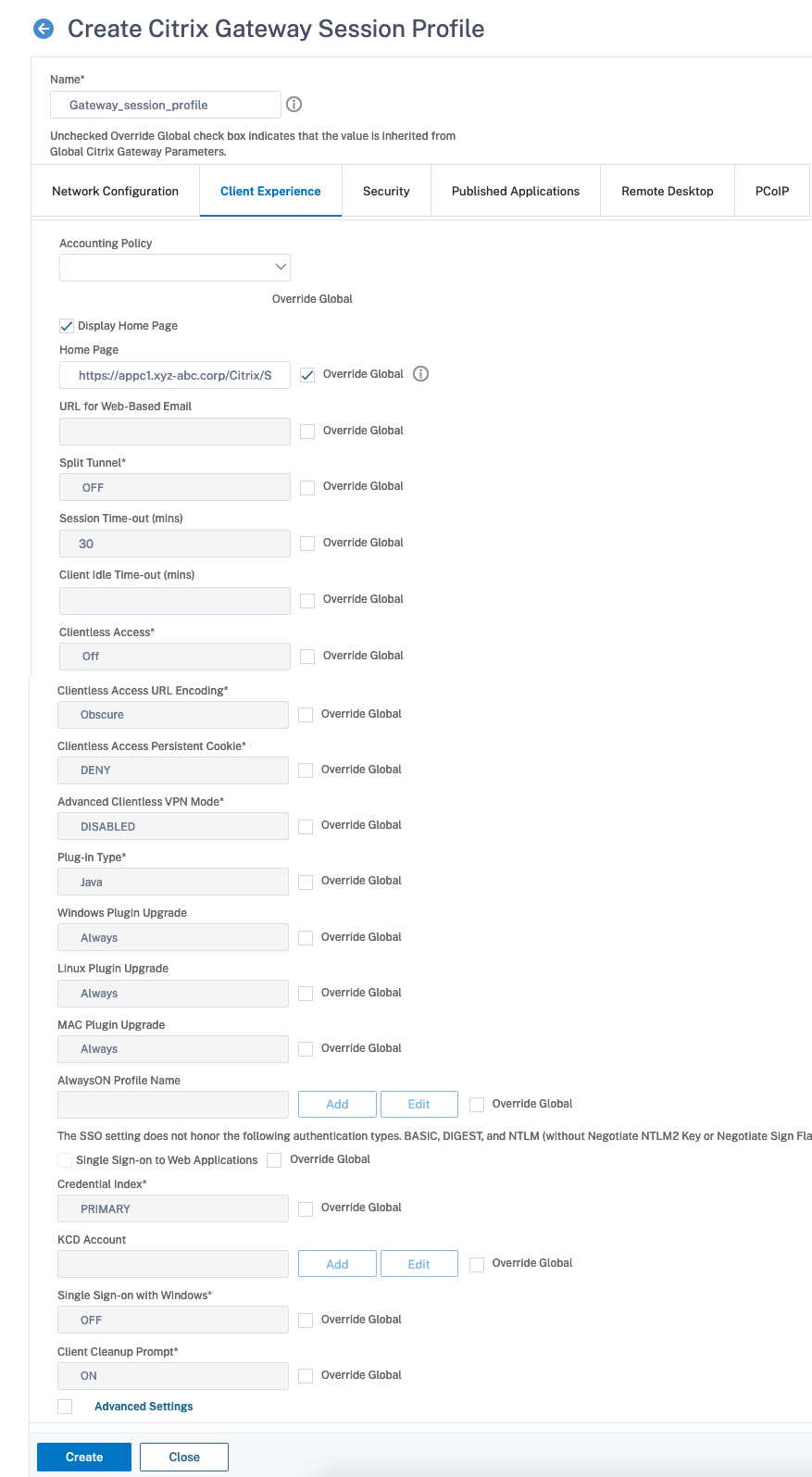

Figure 2. Session Profile Settings on the Client Experience Tab

Client Experience Tab in the Session Profile for Citrix Secure Access client

Figure 3. Session Profile Settings on the Published Applications Tab

Published Applications Tab in the Session Profile for Citrix Secure Access client

Examples of Profile Settings for Receiver or Secure Hub

The following examples show the session profile settings on the Client Experience and Published Applications tab for Receiver or Secure Hub.

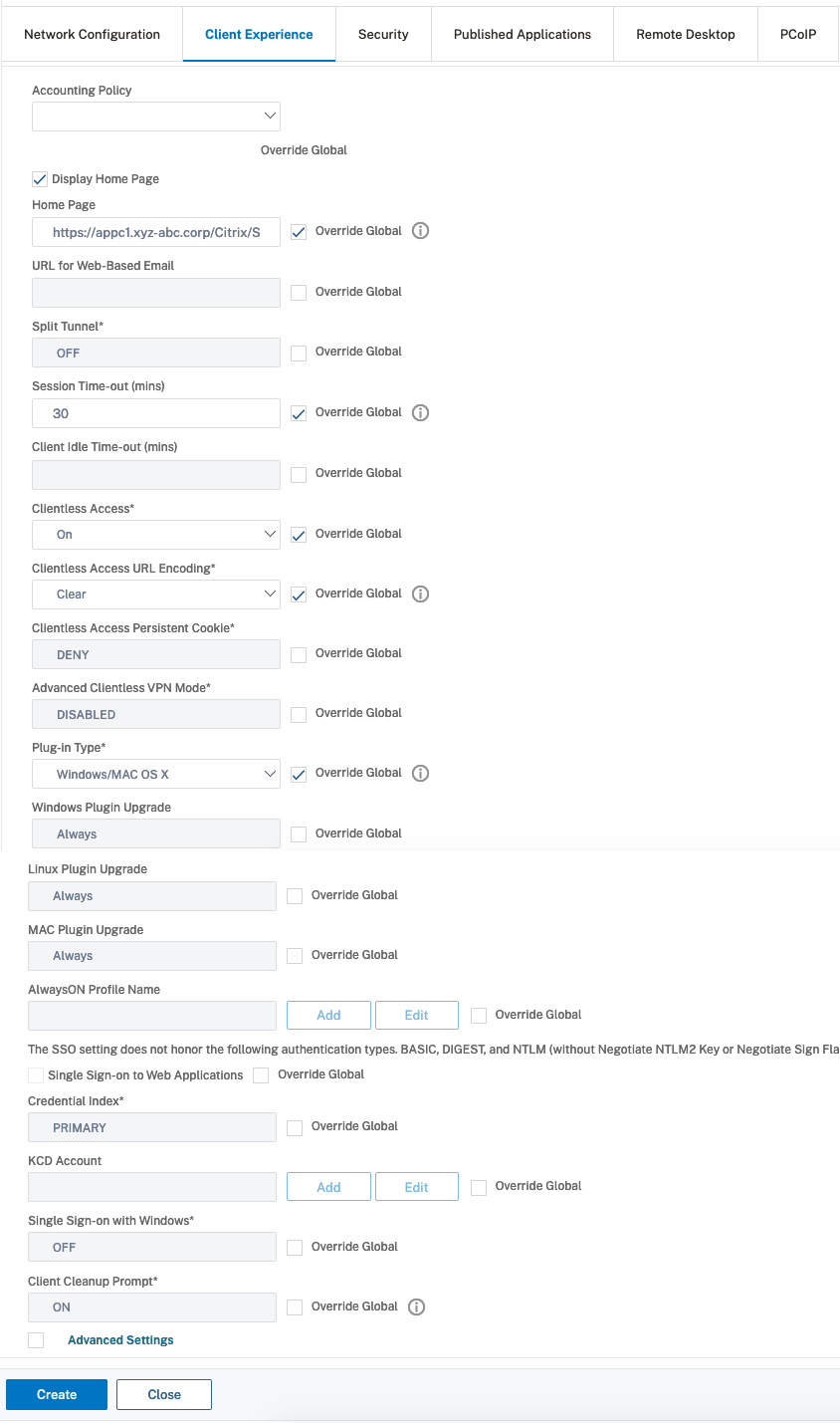

Figure 4. Session Profile Settings on the Client Experience Tab

Session Profiles for Receiver or Secure Hub Created by the Quick Configuration Wizard

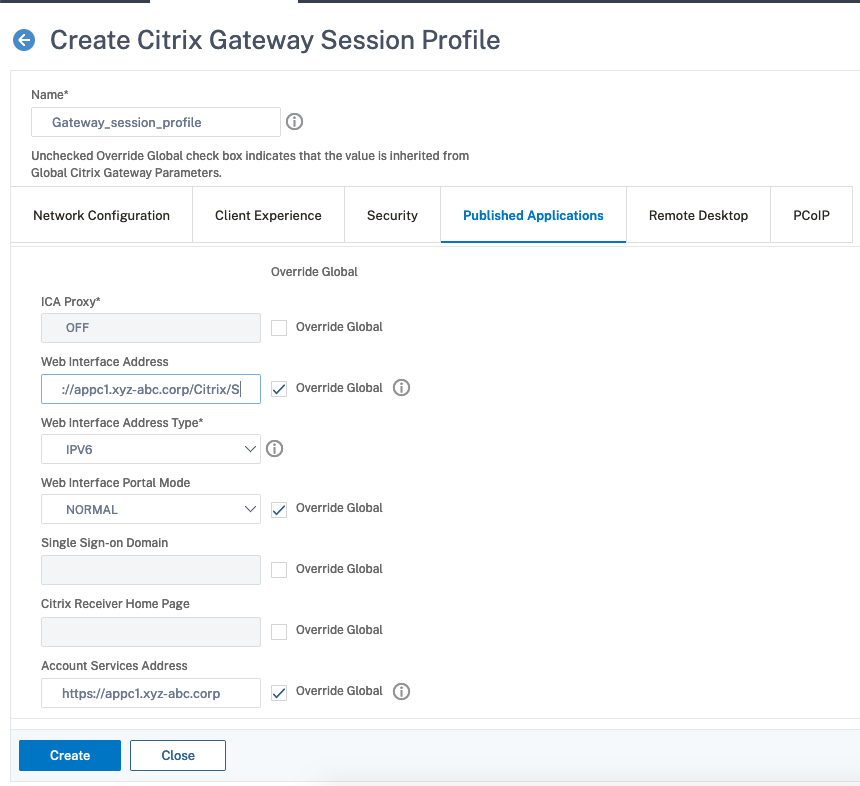

Figure 5. Session Profile Settings on the Published Applications Tab

Session Profile Settings on the Published Applications Tab

Examples of Profile Settings for Receiver for Web

The following examples show the session profile settings on the Client Experience and Published Applications tab for Receiver for Web.

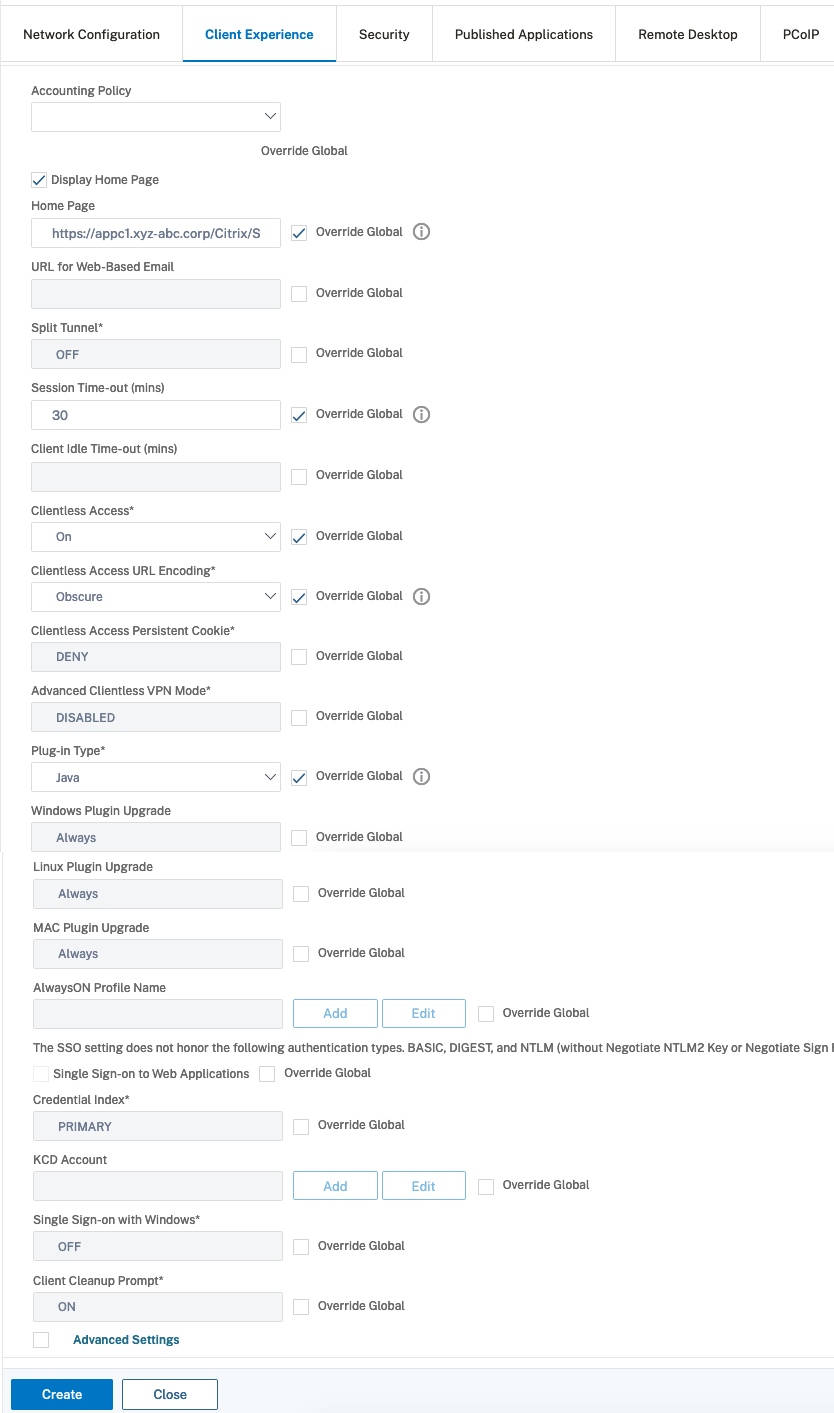

Figure 6. Session Profile Settings on the Client Experience Tab

Profile_Receiever-for-web

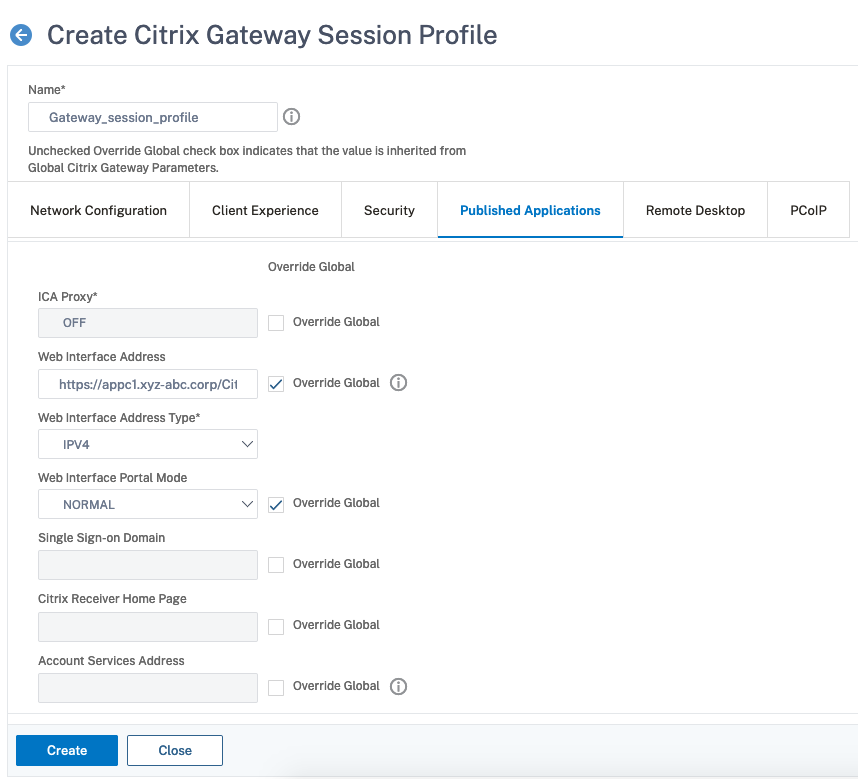

Figure 7. Session Profile Settings on the Published ApplicationsTab

Session Profile Settings on the Published Applications Tab
