Upgrade a NetScaler standalone appliance

Upgrade a NetScaler standalone appliance by using the GUI

1. In a web browser, type the IP address of the NetScaler, for example http://10.102.29.50.
2. In User Name and Password, type the administrator credentials (nsroot/nsroot) and then click Log On.
3. Navigate to System and click System Upgrade.

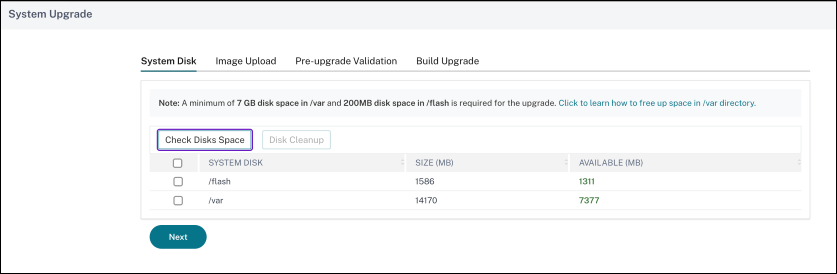

4. Click System Disk to check whether enough space is available on the device.
   Note:
   A minimum of 7 GB disk space in /var and 200 MB disk space in /flash is required for the upgrade.

5. If enough space is not available, click Disk Cleanup and choose the directories to clear enough space.

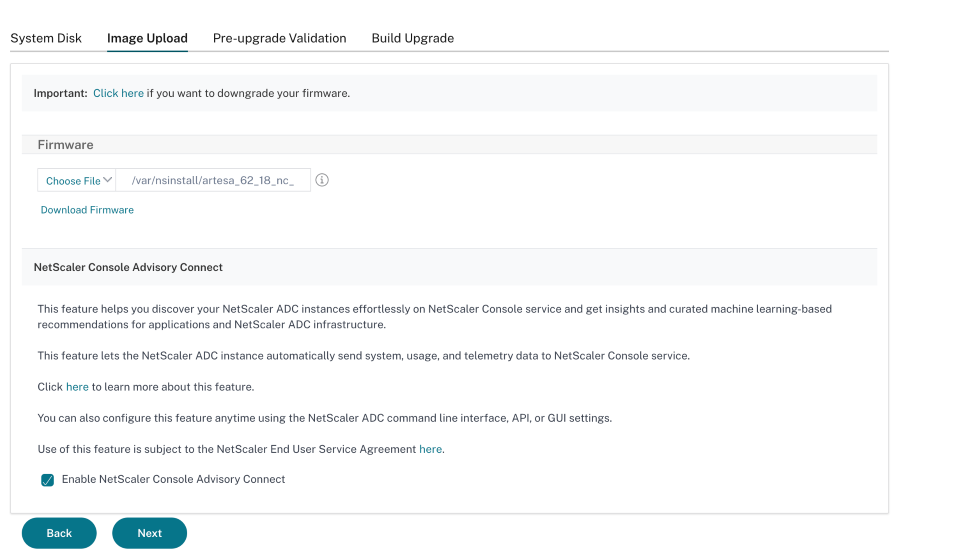

6. Click Next to open the Image Upload tab, from the Choose File menu, select the appropriate option: Local or Appliance. To use the Appliance option, you must upload the firmware to the NetScaler first. You can use any file transfer method such as WinSCP to upload the NetScaler firmware to the appliance.

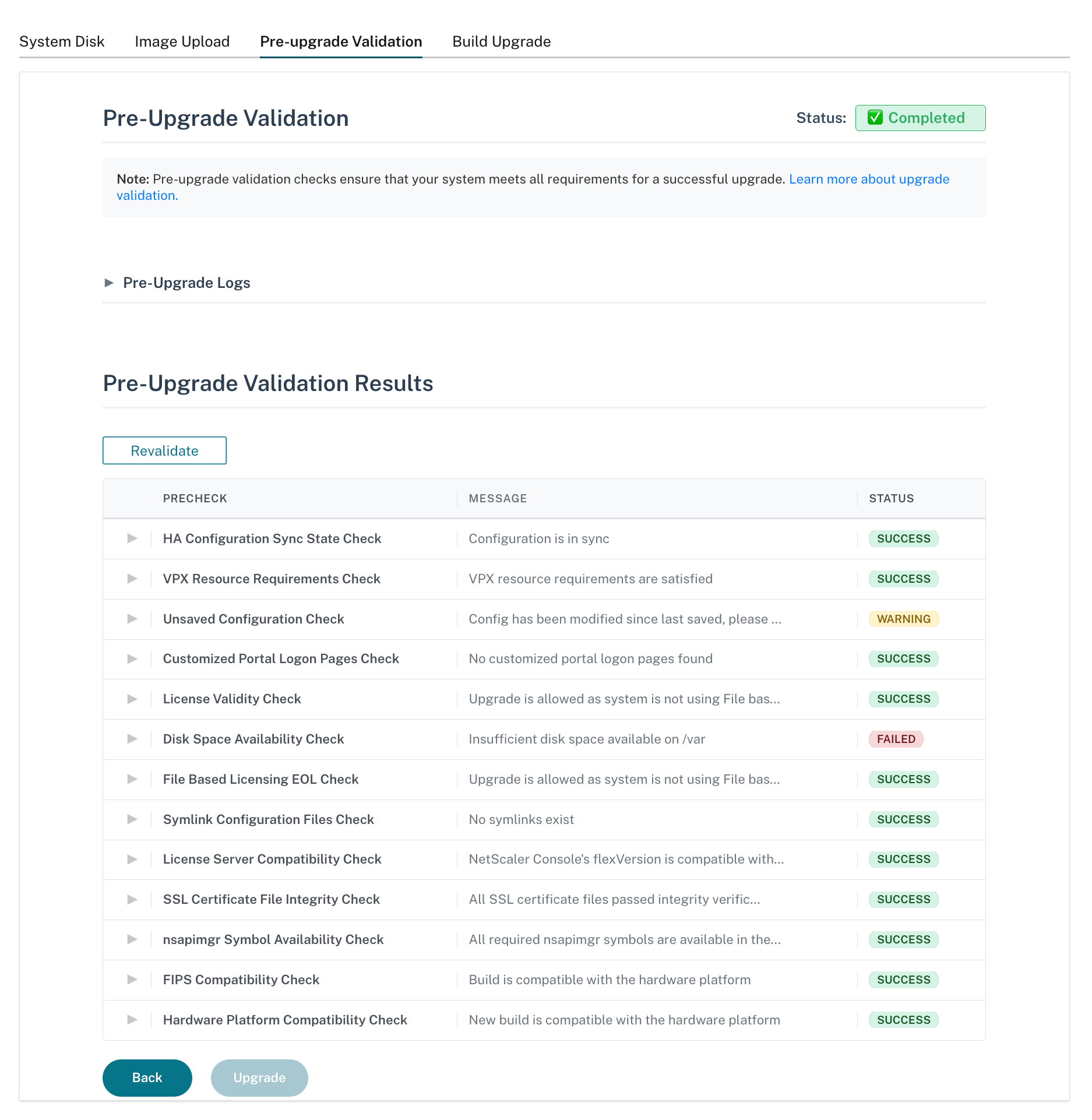

7. Click Next to open the Pre-upgrade Validation tab. The device performs pre-upgrade validation checks.

   For any Failed or Warning check, click the row to view the error, then use the action button at the end of the status row to take corrective action.
   Note:
   For a Warning check, fix the warning and click Revalidate before you continue. If you are sure it does not affect the system, click Ignore Warning & Upgrade. This can cause configuration loss, such as unsaved changes.

8. Click Revalidate (at the top of the validation tasks) to ensure that no checks fail. For more details about the pre-upgrade check performed, see Pre-upgrade validation checks for NetScaler.

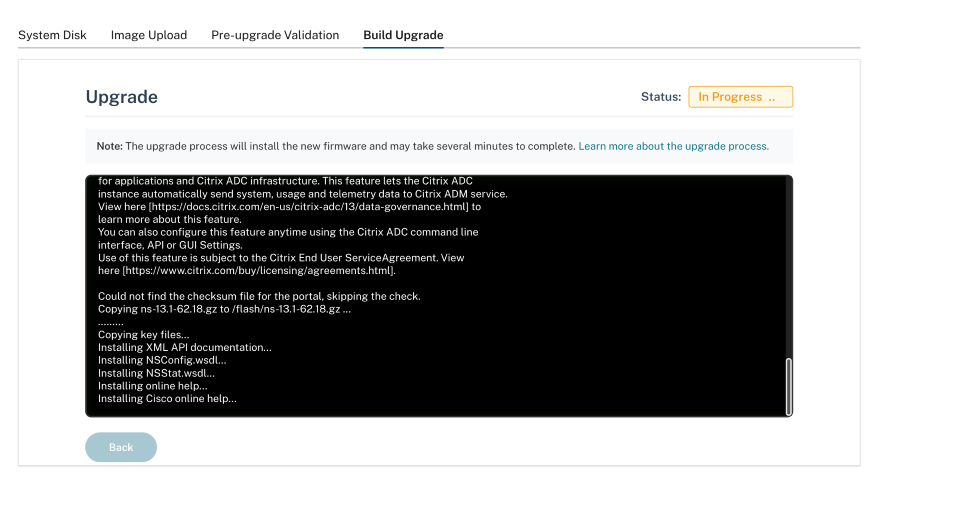

9. Click Upgrade to proceed with the system upgrade.
   Note:
   The system reboots after a successful upgrade.

10. After the upgrade, close all browser instances and clear your computer's cache before accessing the appliance.

Upgrade a NetScaler standalone appliance by using the CLI

1. Use an SSH client, such as PuTTy, to open an SSH connection to the appliance.
2. Log on to the appliance by using the administrator credentials. Save the running configuration. At the prompt, type:
   save config
3. Switch to the shell prompt by running the following command:
   shell
4. Create a copy of the ns.conf file. At the shell prompt, type:
   • cd /nsconfig
   • cp ns.conf ns.conf.NS<currentreleasenumber><currentbuildnumber>
   You must take a backup of the configuration file to another computer.

5. Important:
   It is important that both the upgrade changes and your customizations are applied to an upgraded NetScaler appliance. So, if you have customized configuration files in the /etc directory, perform the pre-upgrade steps in Upgrade considerations for customized configuration files

6. Create a location for the installation package. At the shell prompt type:
   • cd /var/nsinstall
   • cd <releasenumber>
     Note:
     If the desired release number directory is not present, create one using the following command:
     mkdir <releasenumber>
     Example:
     mkdir 14.1

   • mkdir build_<targetbuildnumber>
   • cd build_<targetbuildnumber>
7. Copy the already downloaded NetScaler firmware to the build directory that you have created in the preceding step, by using any file transferring method such as WinSCP. See the Before You Begin section for more information about downloading the NetScaler firmware.
8. Extract the contents of the installation package. Example:
   tar -xvzf build-14.1-60.58_nc_64.tgz
9. Run the following script to perform the pre-upgrade checks in NetScaler.
   ./installns --pre_check
   Note:
   For more information, see Pre-upgrade validation checks.

10. Run the installns script to install the new version of the system software.
    ./installns
    Note:
    During CLI upgrade, you might see the following prompt:
    Do you wish to delete old signature files and kernel images?
    In most cases, select No to retain older kernel images and corresponding signature files. Select Yes only if /flash has insufficient free space and cleanup is required to continue the upgrade.

11. When prompted, restart the NetScaler.

12. Important:
    It is important that both the upgrade changes and your customizations are applied to an upgraded NetScaler appliance. So, if you have customized configuration files in the /etc directory, perform the post-upgrade steps in Upgrade considerations for customized configuration files

How to upgrade a standalone NetScaler appliance by using the CLI

Upgrade a NetScaler standalone appliance by using the NITRO API

Verify entities status on the NetScaler appliance after upgrading

• Virtual servers are in UP state
• Monitors are in UP state
• GSLB sites synchronize without any issues
• All certificates are present on the appliance
• All the licenses are present on the appliance

Check and install NetScaler 14.1 software update

1. In the NetScaler home page, click Check for Update from the nsroot menu at the top right corner.
2. In the Latest System Software Updates Available page, check the available software update that you can install.
3. Click Download to download the installation package from the NetScaler download website.
4. After you have downloaded the software package, install the update through either CLI or GUI procedure.

Related resources

• Video tutorial - How to upgrade your NetScaler using CLI
• You can also upgrade NetScaler by using the following methods:
  • In Service Software Upgrade.
  • Upgrade jobs.
