Enable data collection for NetScaler Gateway appliances deployed in single-hop mode

February 9, 2024

Contributed by:

R S

When you deploy NetScaler Gateway in single-hop mode, it is at the edge of the network. The Gateway instance provides proxy ICA connections to the desktop delivery infrastructure. Single-hop is the simplest and most common deployment. Single-hop mode provides security if an external user tries to access the internal network in an organization. In single-hop mode, users access the NetScaler appliances through a virtual private network (VPN).

To start collecting the reports, you must add the NetScaler Gateway appliance to the NetScaler Console inventory and enable AppFlow on NetScaler Console.

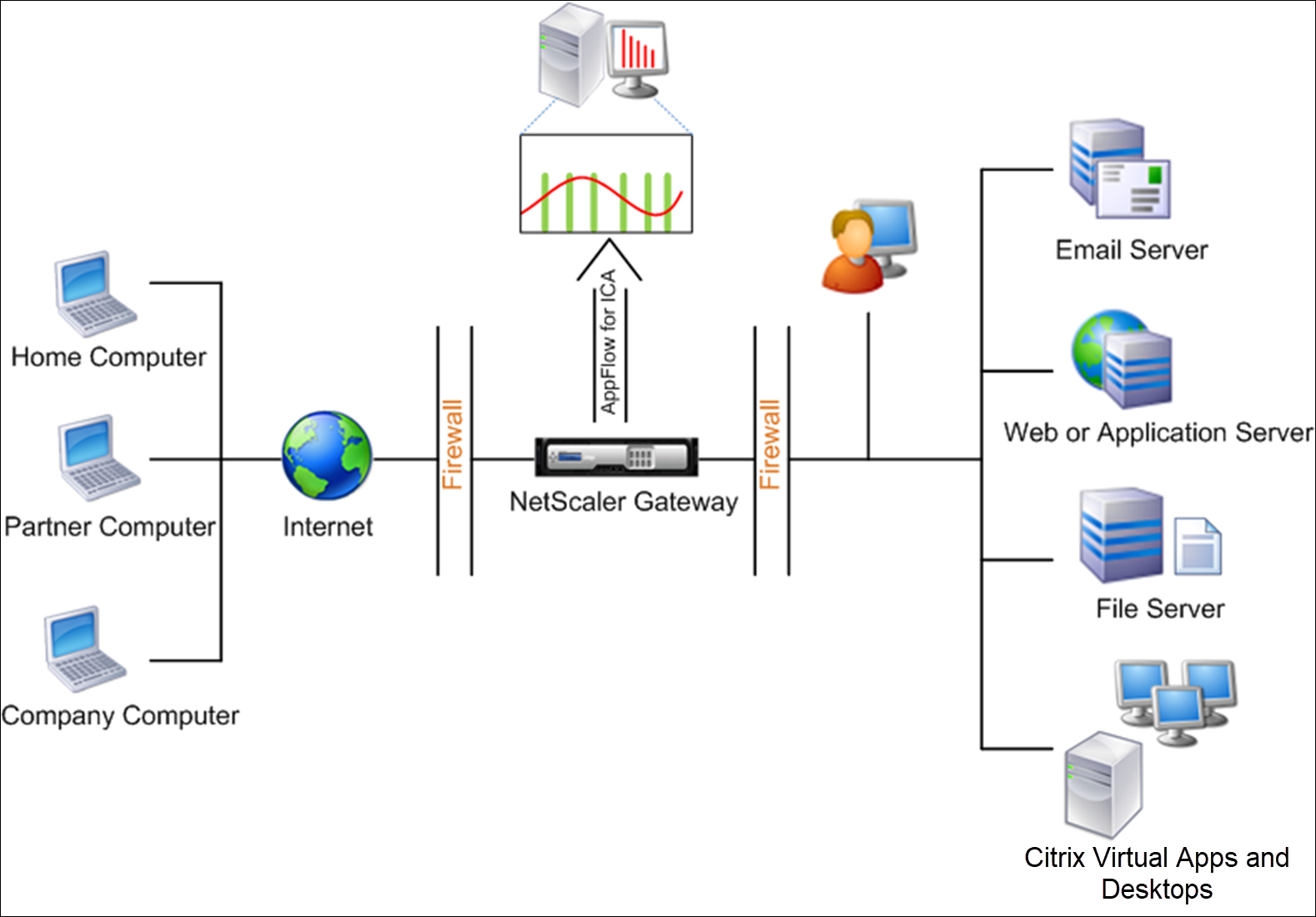

Single hop

To enable the AppFlow feature from NetScaler Console:

Navigate to Infrastructure > Instances, and select the NetScaler instance you want to enable analytics.
From the Action list, select Enable/Disable Insight.
Select the VPN virtual servers, and click Enable AppFlow.
In the Enable AppFlow field, type true, and select ICA.
Click OK.

Note

When you enable AppFlow in single-hop mode, the following commands run in the background. These commands are explicitly specified here for troubleshooting purposes.

add appflow collector \<name\> -IPAddress \<ip\_addr\>

add appflow action \<name\> -collectors \<string\>

set appflow param -flowRecordInterval \<secs\>

disable ns feature AppFlow

enable ns feature AppFlow

add appflow policy \<name\> \<rule\> \<expression\>

set appflow policy \<name\> -rule \<expression\>

bind vpn vserver \<vsname\> -policy \<string\> -type \<type\> >-priority \<positive\_integer\>

set vpn vserver \<name\> -appflowLog ENABLED

save ns config

EUEM virtual channel data is part of HDX Insight data that the NetScaler Console receives from Gateway instances. EUEM virtual channel provides the data about ICA RTT. If EUEM virtual channel is not enabled, the remaining HDX Insight data are still displayed on NetScaler Console.
