Security Advisory
NetScaler secure configuration advisory serves as a comprehensive guide offering expert recommendations and specific instructions to enhance the security posture of NetScaler configurations. With this feature, you can safeguard your Application Delivery Controller (ADC) infrastructure against potential vulnerabilities and evolving cyber threats. By meticulously following the recommended guidelines, you can proactively mitigate risks, enhance system resilience, and maintain a robust defense against unauthorized access and malicious activities.
This advanced feature not only scans the NetScaler configuration for potential vulnerabilities but also proactively suggests precise commands to remediate those configurations. The network administrators can quickly identify security gaps and implement the necessary changes to strengthen their NetScaler deployment.

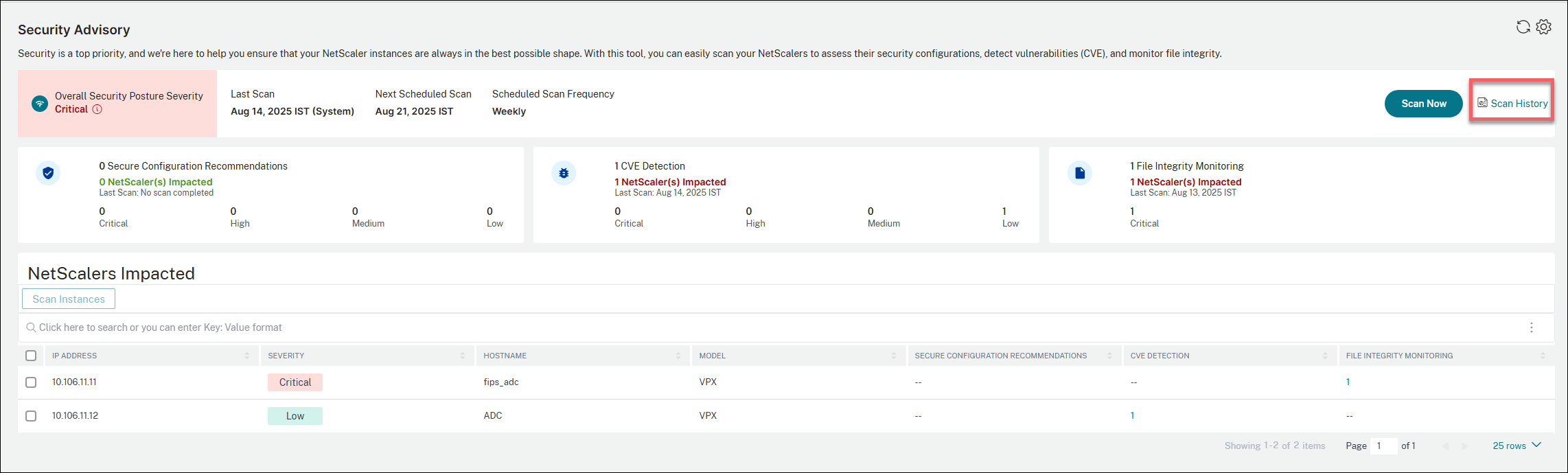

Security advisory landing page
The Security Advisory landing page offers a comprehensive bird’s-eye view of your NetScaler deployment’s security posture. The interface is enhanced and designed to provide administrators and security professionals with immediate insights into the overall health and vulnerability status of their NetScaler infrastructure.
The key features include:
- A consolidated dashboard displaying active security advisories.
- Summary of affected devices.
- A clear breakdown of potential risks.
You can quickly identify critical vulnerabilities, secure configuration recommendations including mitigation steps, and links to relevant documentation.
The scoring methodology follows “highest score wins” to show the overall security posture of a NetScaler deployment. The scoring methodology is designed to provide a comprehensive and easily understandable representation of a NetScaler deployment’s security posture. By adhering to a “highest score wins” principle, the system prioritizes clarity and immediate understanding. This approach allows administrators and security professionals to quickly assess the effectiveness of their configurations, CVEs, File Integrity Monitoring observations and identify areas where improvements can be made.

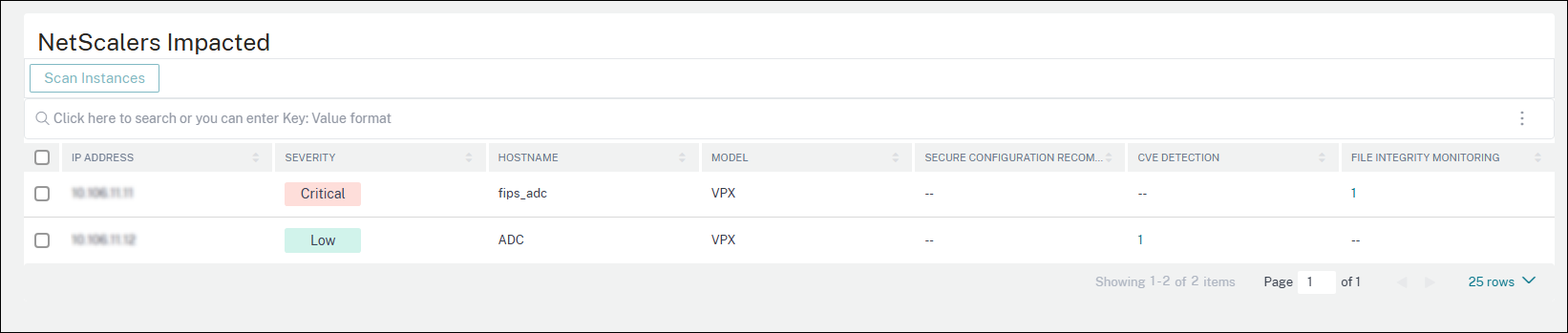

The landing page allows you to filter issues by criticality and NetScaler IP address. When a specific criticality level is selected, only NetScaler instances at that severity level are shown.
Scanning for vulnerabilities

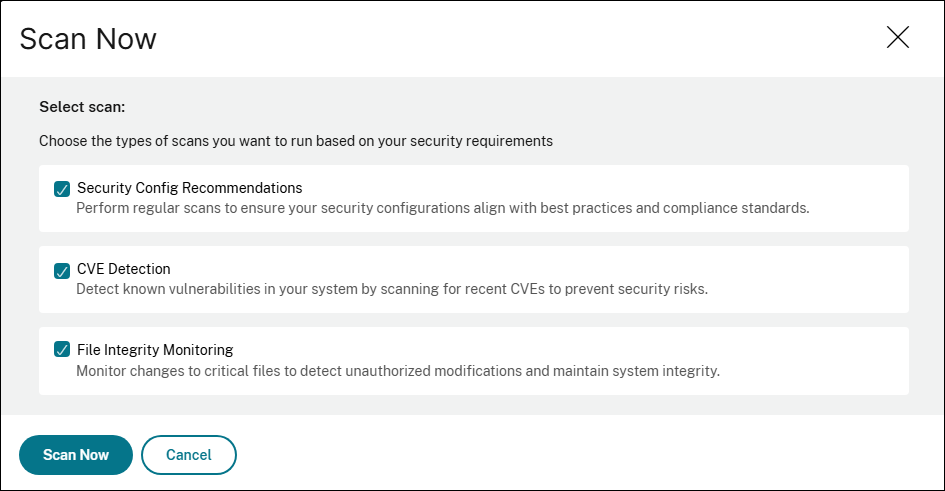

The landing page serves as a central hub for initiating comprehensive security assessments of your NetScaler deployment. From this interface, you have the flexibility to trigger several critical scans:
- Vulnerability Scans for NetScaler Configuration: This option allows for a deep analysis of your NetScaler configuration settings to identify any misconfigurations, weak points, or deviations from best practices that might expose your system to attacks.
- CVE (Common Vulnerabilities and Exposures) Scans: By using an up-to-date database of known vulnerabilities, this scan identifies if your NetScaler deployment is susceptible to any publicly disclosed security flaws.
- File Integrity Monitoring (FIM): FIM scans look for any changes to upgrade binaries. Any changes to the upgrade binaries is immediately flagged.

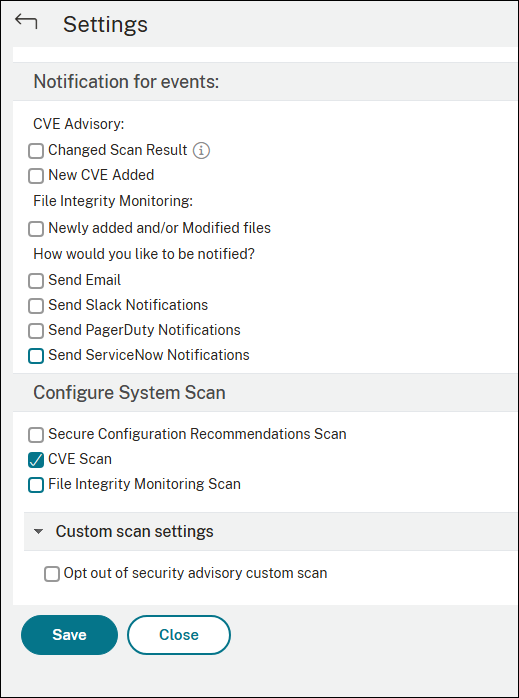

While on-demand scans are supported, system scans are run on a weekly basis. NetScaler Console decides the frequency of system scans and you cannot modify them.

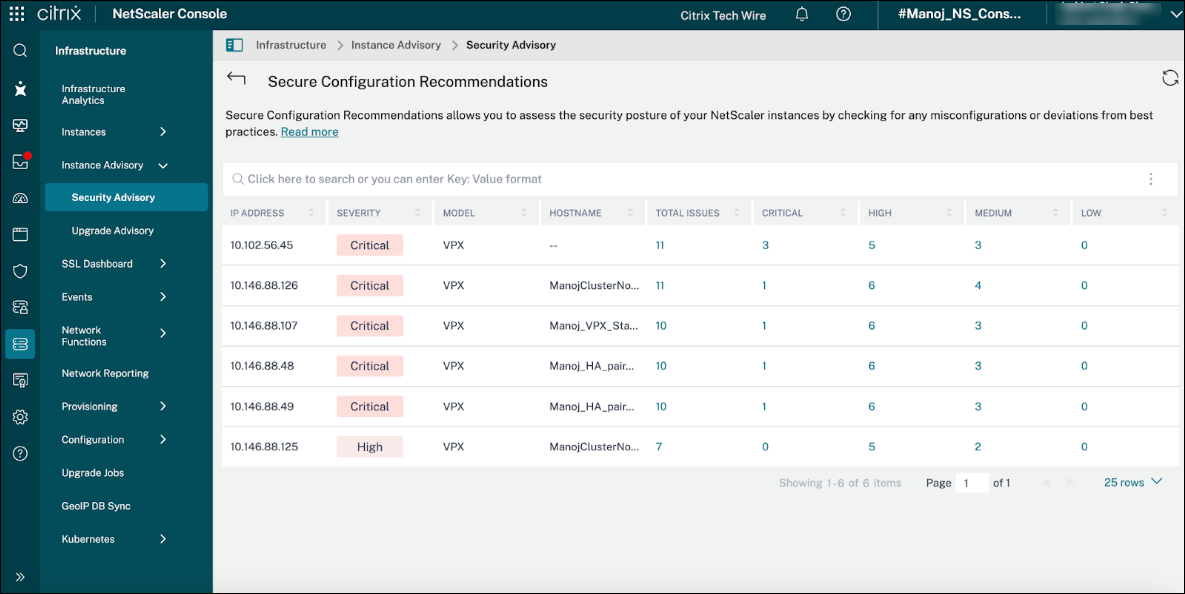

Secure configuration recommendations
The Secure Configuration Recommendations tab provides an in-depth, instance-level analysis of configuration observations, designed to empower users with actionable insights. This comprehensive view is meticulously categorized by severity, allowing for a prioritized approach to addressing potential configuration vulnerabilities.
Severity-based prioritization
The categorization by severity enables users to efficiently allocate their efforts. Observations are typically classified into tiers such as:
- Critical: Issues that pose an immediate and significant risk to the security and integrity of the NetScaler instance. These issues must be addressed with the highest urgency.
- High: Configurations that might lead to substantial security breaches if exploited, requiring prompt attention.
- Medium: Observations that indicate potential weaknesses or misconfigurations. While these issues are not critical, they might contribute to a larger security incident if left unaddressed.
- Low: Minor recommendations or best practices that improve the overall security posture. These issues do not represent an immediate threat.

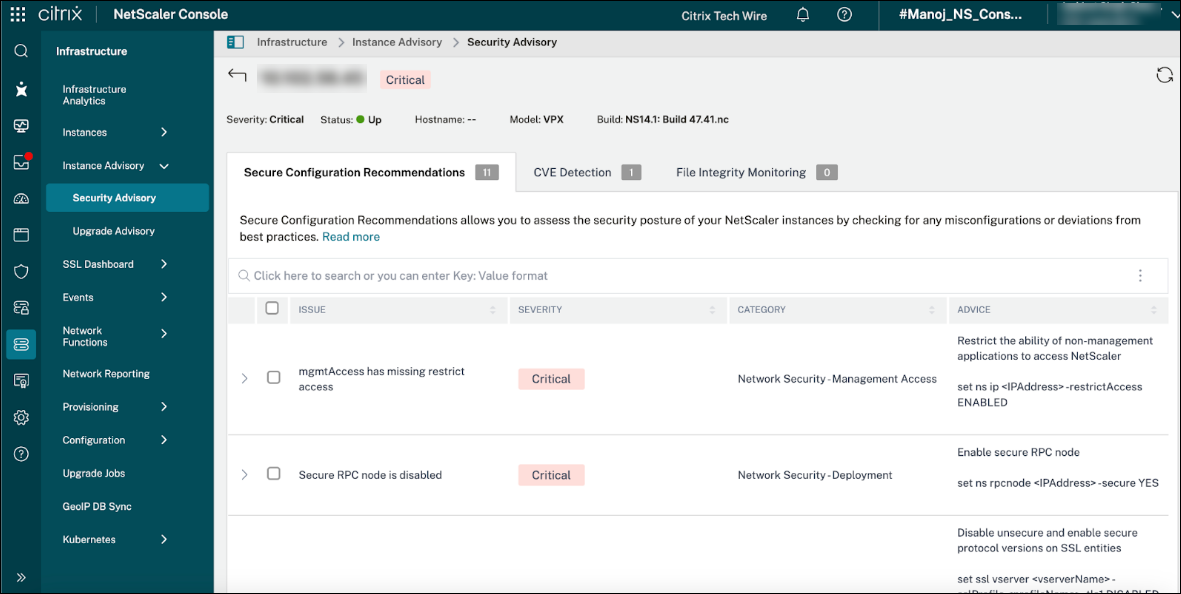

Benefits of a detailed instance-level view
- Targeted Remediation: Instead of generic advice, users receive specific recommendations tailored to each individual NetScaler instance, ensuring precise and effective remediation.
- Reduced Attack Surface: By systematically addressing observed misconfigurations, organizations can significantly reduce their attack surface and minimize the likelihood of successful exploits.
- Compliance Adherence: The detailed observations can help organizations identify and correct configurations that might violate regulatory compliance standards (for example, GDPR, HIPAA, PCI DSS).
- Improved Security Posture: Proactive identification and resolution of configuration weaknesses lead to a stronger overall security posture and enhanced resilience against cyber threats.
- Operational Efficiency: By providing clear and actionable insights, the system streamlines the security remediation process, saving time and resources.
You can pick and choose which observations to address first, based on your priorities, risk tolerance, and available resources. This flexibility ensures that the most pressing security concerns are tackled without delay, while still providing the necessary information to achieve comprehensive configuration hardening over time. This option empowers security administrators to make informed decisions and take decisive action to safeguard their NetScaler deployments.

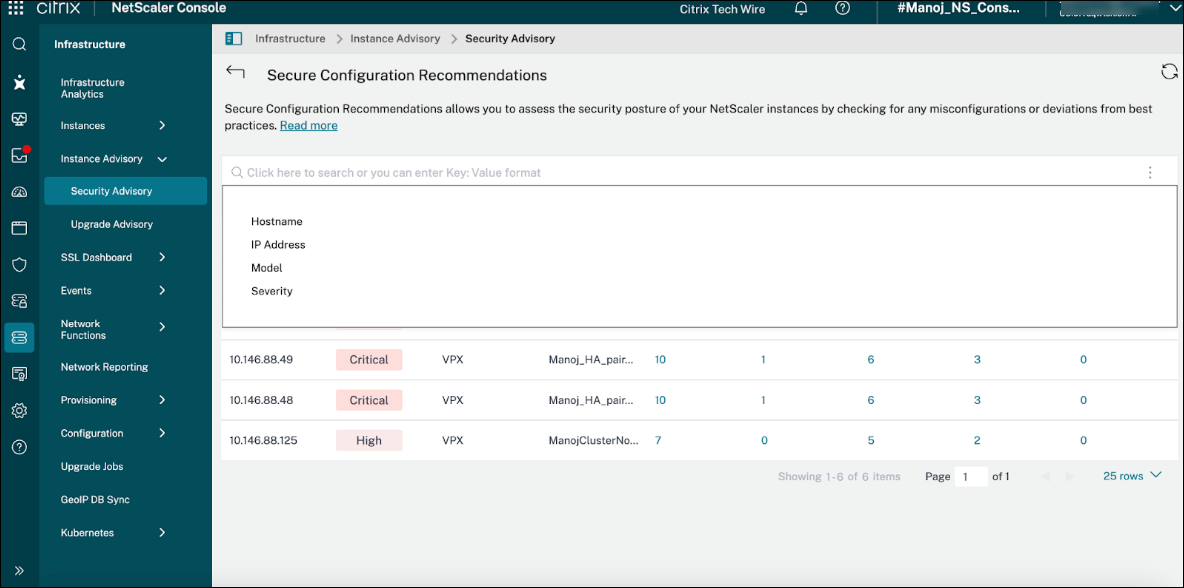

The free-text search functionality enables you to narrow down results based on various key identifiers. For example, you can efficiently search for an instance by its unique host name, providing a direct method to pinpoint a particular device. Alternatively, searching by IP address offers another precise way to locate instances, especially useful in network-centric environments.
Beyond basic identification, the search also supports filtering by the NetScaler model. This means that you can specify models such as MPX, SDX, or VPX to view only instances belonging to a particular hardware or software category. You can also refine the search by Severity level, allowing you to prioritize instances based on their criticality, from informational alerts to critical warnings.

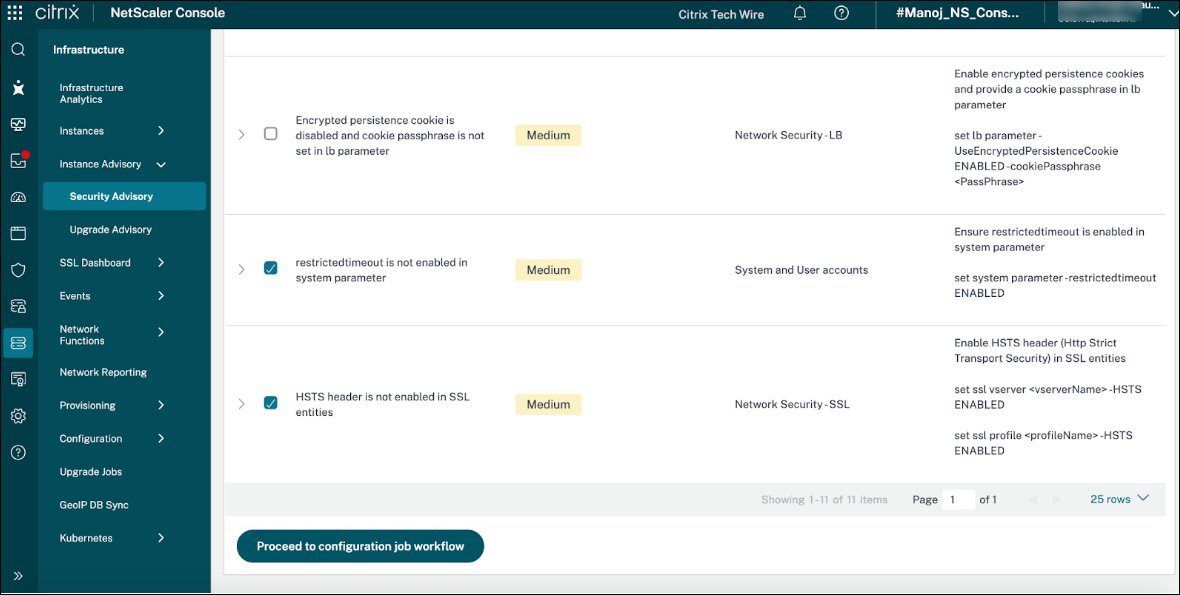

Remediate configuration recommendations
Once you have evaluated the configuration observations and determined which ones require action, a comprehensive view of recommended configurations is presented. The system then displays a dedicated page, as shown in the following image, displaying the remediation steps tailored to your selections. For instance, if you opt to address only critical severity issues for a specific NetScaler instance (in this particular scenario, the instance with IP address 10.102.56.45), the page dynamically populates with the relevant, high-priority recommendations to guide the remediation process effectively.
Configuration recommendations can be categorized into two types:
-
Recommendations requiring user input: This category encompasses configuration suggestions that necessitate specific, contextual information or decisions from the NetScaler administrator or security team. These are typically scenarios where a generic default value might not be appropriate, or where the optimal setting depends on the unique operational environment, security policies, or application requirements. The following are a few recommendation examples:
-
Defining specific IP addresses or IP ranges: For instance, configuring firewall rules to allow traffic only from trusted internal subnets or specific client IP addresses. The system cannot infer these unique network details.
- Setting custom port numbers: While standard ports exist for many services, applications might be configured to use non-default ports for security or operational reasons. The network admin must specify the port numbers.
- Specifying host names or domain names: When configuring SSL certificates, load balancing virtual servers, or content switching policies, the exact host names or domain names that the NetScaler instance serves or interacts with must be provided by the user.
- Providing authentication server details: Integrating NetScaler with external authentication systems like LDAP, RADIUS, SAML, or OAuth requires the user to input server IP addresses, shared secrets, directory paths, and other protocol-specific details.
- Setting up specific URL rewriting or content switching policies: The precise URLs, patterns, and target destinations for these advanced features are highly specific to the application architecture and must be defined by the user.
- Implications: These recommendations often involve a deeper understanding of the deployment’s specific needs, security policies, and network topology. Errors in user input can lead to service disruptions or security vulnerabilities, emphasizing the need for careful planning and validation. Automated tools or scripts implementing these typically prompt for the necessary parameters, or read them from a configuration file.
-
-
Recommendations not requiring user input: This category includes configuration suggestions that can be applied universally or involve standard best practices that do not depend on unique environmental variables. These are often foundational security enhancements or performance optimizations that are beneficial across most NetScaler deployments. The following are a few recommendation examples:
- Disabling weak ciphers or protocols: Recommend that you disable SSL/TLS versions, such as SSLv3 or TLS 1.0, or specific weak cipher suites (for example, RC4, 3DES), as these are known vulnerabilities and their removal is a universal security best practice. The system does not need specific input to know which ciphers are weak.
- Enabling HTTP Strict Transport Security (HSTS): This is a policy enforced by web browsers to only interact with a server using secure HTTPS connections. Enabling it is a standard security hardening step.
-
Setting secure cookie flags (for example,
Secure
,HttpOnly
): These flags enhance the security of session cookies, preventing them from being transmitted over unencrypted channels or accessed through client-side scripts. Their application is a general recommendation. - Enabling common security headers: Headers like X-Frame-Options, X-Content-Type-Options, and Content-Security-Policy (with a default safe policy) can be recommended without specific user input, as they universally improve client-side security.
- Implementing default rate limiting for common attacks: While custom rate limits might require input, a recommendation to apply a general rate limit to common attack vectors (for example, excessive failed login attempts) might be applicable as a baseline.
- Configuring optimal buffer sizes or timeouts: General performance recommendations related to internal buffer sizes or connection timeouts that are determined by system architecture rather than specific application logic.
- Ensuring proper logging levels for security events: A recommendation to ensure a certain level of logging for security-related events is a general best practice for auditing and incident response.
-
Implications: These recommendations are often excellent candidates for automation or baseline configuration scripts, as they can be applied uniformly across multiple NetScaler instances without requiring manual intervention for specific details. They contribute to a strong security posture by addressing common vulnerabilities and enforcing widely accepted standards.
In summary, classifying configuration recommendations based on user input requirements streamlines the implementation process. Recommendations that require input demand careful data gathering and validation from the user, while those not requiring input can often be applied as standard security baselines or through automated deployment mechanisms.

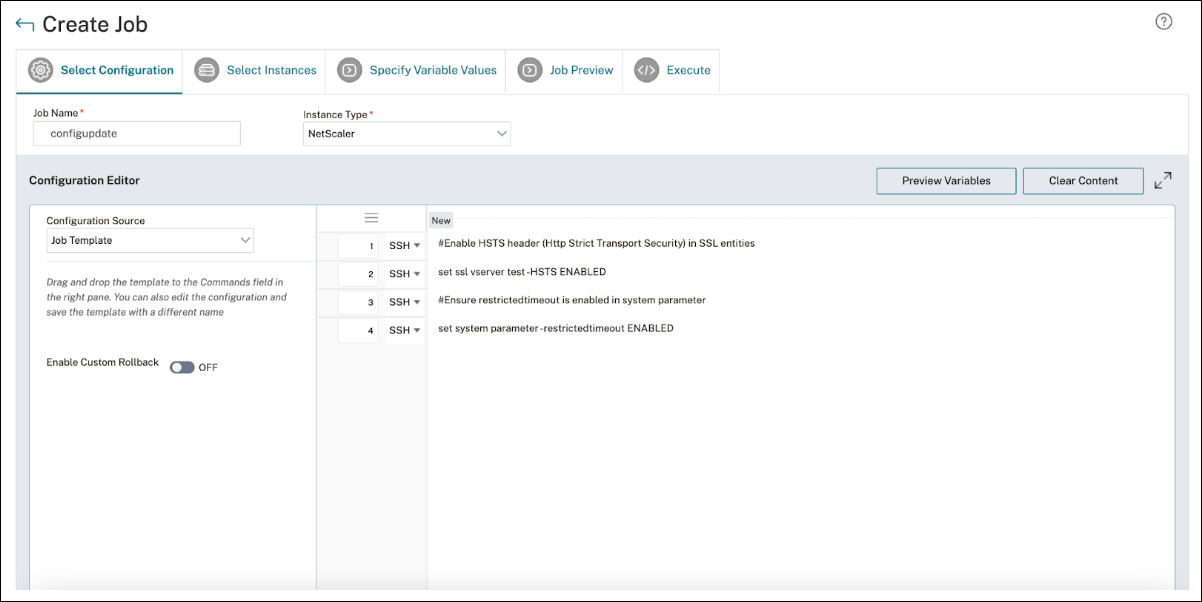

Once a user has decided which configuration to address, the existing configuration job workflow takes over to push the configuration changes.

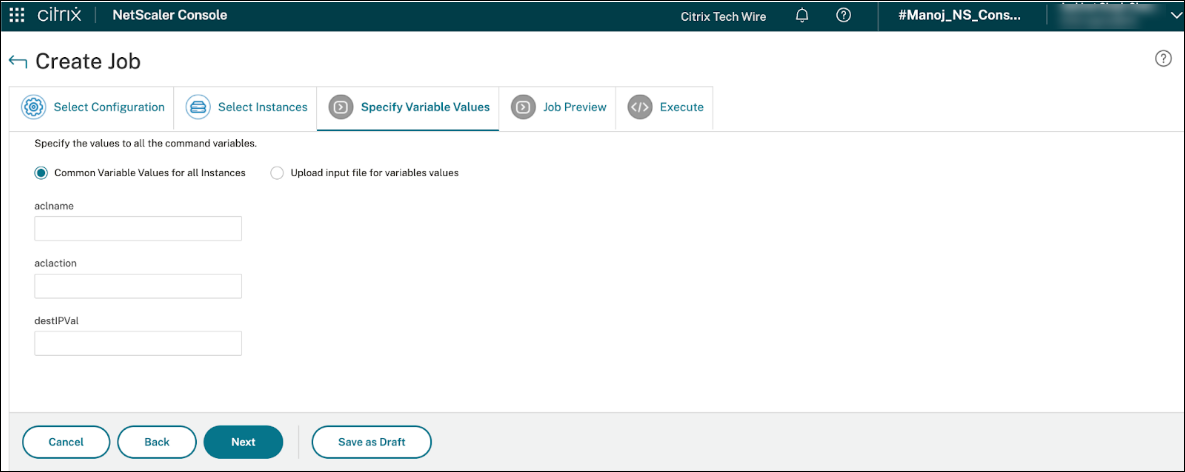

For instance, here’s an example of a configuration recommendation that requires user input. One can enter configuration values one by one or choose to upload a file containing the configuration values as shown in the following image.
